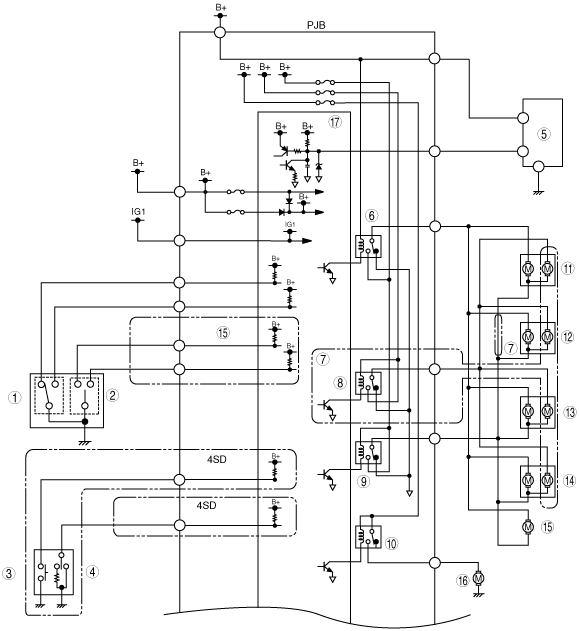

THEFT-DETERRENT SYSTEM WIRING DIAGRAM[KEYLESS ENTRY SYSTEM]
id0914b3100700
b3b0914t002
|
|
1
|
Door lock-link switch
|
|
2
|
Door key cylinder switch
|
|
3
|
Trunk lid key cylinder push switch
|
|
4
|
Trunk lid key cylinder switch
|
|
5
|
Keyless control module
|
|
6
|
Door lock relay
|
|
7
|
With double lock function
|
|
8
|
Double lock relay
|
|
9
|
Door unlock relay
|
|
10
|
Trunk lid unlock relay
|
|
11
|
Front door lock actuator (driver’s side)
|
|
12
|
Front door lock actuator (passenger’s side)
|
|
13
|
Rear door lock actuator (LH)
|
|
14
|
Rear door lock actuator (RH)
|
|
15
|
Liftgate lock actuator
|
|
16
|
Trunk lid opener
|
|
17
|
Microcomputer
|
b3b0914t001
|
|
1
|
Trunk compartment light
|
|
2
|
Trunk lid latch switch
|
|
3
|
Cargo compartment light
|
|
4
|
Liftgate latch switch
|
|
5
|
Bonnet latch switch
|
|
6
|
Front door latch switch (LH)
|
|
7
|
Front door latch switch (RH)
|
|
8
|
Rear door latch switch (LH)
|
|
9
|
Rear door latch switch (RH)
|
|
10
|
Front turn light (LH)
|
|
11
|
Side turn light (LH)
|
|
12
|
Front turn light (RH)
|
|
13
|
Side turn light (RH)
|
|
14
|
Rear turn light (LH)
|
|
15
|
Rear turn light (RH)
|
|
16
|
Instrument cluster
|
|
17
|
Intruder sensor
|
|
18
|
Theft-deterrent siren
|
|
19
|
Microcomputer
|
