POWER DOOR LOCK SYSTEM CONSTRUCTION/OPERATION[KEYLESS ENTRY SYSTEM]
id0914b3104600
• Consists of the following parts;
-
― PJB
― Front door latch and lock actuator
― Rear door latch and lock actuator
― Liftgate latch and lock actuator (5HB)
― Door lock-link switch (built into the driver-side front door lock actuator)
― Door key cylinder switch (built into the driver-side front door lock actuator)
― Trunk lid key cylinder switch (built into the trunk lid key cylinder) (4SD)
• Unlocking/locking of all doors and liftgate is performed by operation of the door key cylinder (door key cylinder switch) and driver-side door knob (door lock-link switch).
• Unlocking/locking of all doors is performed by operation of the trunk lid key cylinder (trunk lid key cylinder switch). (4SD)
|

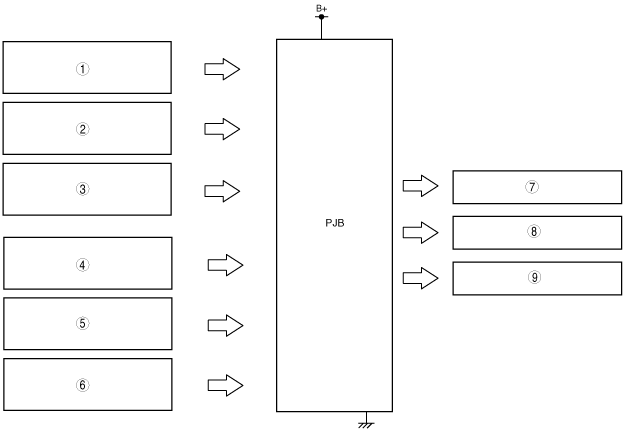

1
|
Door latch switch (door open or closed)
|
|
2
|
Trunk lid latch switch (trunk lid open or closed)
|
|
3
|
Liftgate latch switch (liftgate open or closed)
|
|
4
|
Door key cylinder switch (lock or unlock)
|
|
5
|
Door lock-link switch (lock or unlock)
|
|
6
|
Trunk lid key cylinder switch (lock or unlock)
|
|
7
|
Front door lock actuator
|
|
8
|
Rear door lock actuator
|
|
9
|
Liftgate lock actuator
|
• When the locking operation using the driver-side front door key cylinder is performed twice within 3 s, unlocking the door with the door lock knob is inhibited. (Double-locking function)
• When any door is open, locking operation using the door key cylinder or the driver-side door lock knob is cancelled and the doors are unlocked. (Lock cancel function)
