LATCH AND LOCK ACTUATOR CONSTRUCTION[KEYLESS ENTRY SYSTEM]

id0914b3106100

• The following parts are built into the latch and lock actuators of each door and liftgate:

― A latch switch that turns on/off with the opening/closing of the door or liftgate.

• When the door or liftgate is open, the latch switch is on.

• When the door or liftgate is closed, the latch switch is off.

― A lock actuator that latches/unlatches the latch.

• The following parts are built into the lock and latch actuator of the driver-side door:

― Door key cylinder switch

― Door lock-link switch

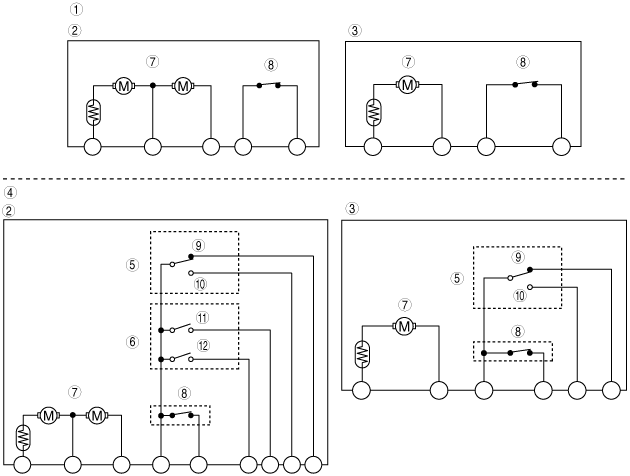

b3e0914t010

1

Door latch switch (door open or closed)

2

Double locking system

3

Except double locking system

4

Driver"s side

5

Front door lock-link switch

6

Front door key cylinder switch

7

Lock actuator

8

Latch switch

9

Unlock

10

Lock

11

Unlock (reset)

12

Lock (set)

1	Door latch switch (door open or closed)
2	Double locking system
3	Except double locking system
4	Driver"s side
5	Front door lock-link switch
6	Front door key cylinder switch
7	Lock actuator
8	Latch switch
9	Unlock
10	Lock
11	Unlock (reset)
12	Lock (set)
