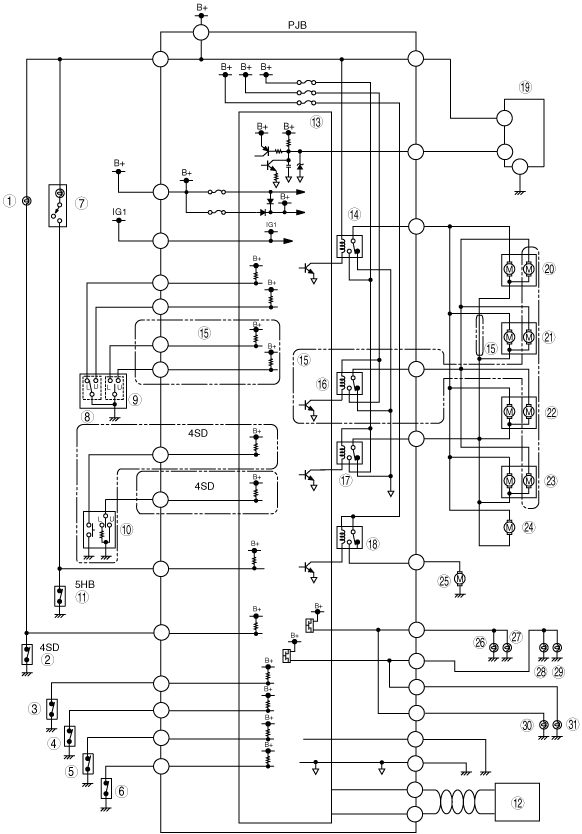

POWER DOOR LOCK SYSTEM AND KEYLESS ENTRY SYSTEM WIRING DIAGRAM[KEYLESS ENTRY SYSTEM]
id0914b3106300
b3b0914w004
|
|
1
|
Trunk compartment light
|
|
2
|
Trunk lid latch switch
|
|
3
|
Front door latch switch (LH)
|
|
4
|
Front door latch switch (RH)
|
|
5
|
Rear door latch switch (LH)
|
|
6
|
Rear door latch switch (RH)
|
|
7
|
Cargo compartment light
|
|
8
|
Door lock-link switch
|
|
9
|
Door key cylinder switch
|
|
10
|
Trunk lid key cylinder switch
|
|
11
|
Liftgate latch switch
|
|
12
|
Instrument cluster
|
|
13
|
Microcomputer
|
|
14
|
Door lock relay
|
|
15
|
With double lock function
|
|
16
|
Double lock relay
|
|
17
|
Door unlock relay
|
|
18
|
Trunk lid unlock relay
|
|
19
|
Keyless control module
|
|
20
|
Front door lock actuator (driver’s side)
|
|
21
|
Front door lock actuator (passenger’s side)
|
|
22
|
Rear door lock actuator (LH)
|
|
23
|
Rear door lock actuator (RH)
|
|
24
|
Liftgate lock actuator
|
|
25
|
Trunk lid unlock actuator
|
|
26
|
Front turn light (LH)
|
|
27
|
Side turn light (LH)
|
|
28
|
Front turn light (RH)
|
|
29
|
Side turn light (RH)
|
|
30
|
Rear turn light (LH)
|
|
31
|
Rear turn light (RH)
|
