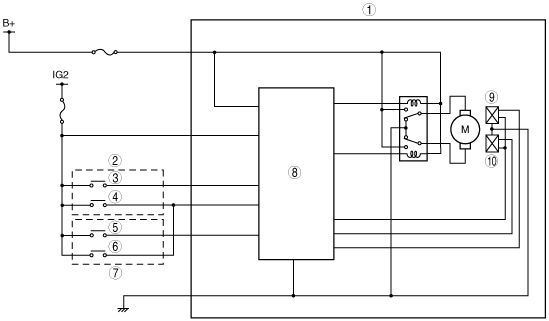

SLIDING SUNROOF SYSTEM WIRING DIAGRAM
id091500100400
b3e0915t102
|
|
1
|
Sunroof motor
|
|
2
|
Slide switch
|
|
3
|
Open
|
|
4
|
Close
|
|
5
|
Up
|
|
6
|
Down
|
|
7
|
Tilt switch
|
|
8
|
Control unit
|
|
9
|
Hall effect switch 2
|
|
10
|
Hall effect switch 1
|
