SUNROOF UNIT CONSTRUCTION/OPERATION


id091500100600

•  Consists of a glass panel, frame and sunroof motor.
•  The drive cables inside the frame are engaged with the sunroof motor drive gear so that when the motor rotates the drive cables also move.
•  The guides are fixed to the glass panel so that the panel is moved by the drive cables sliding the guides.

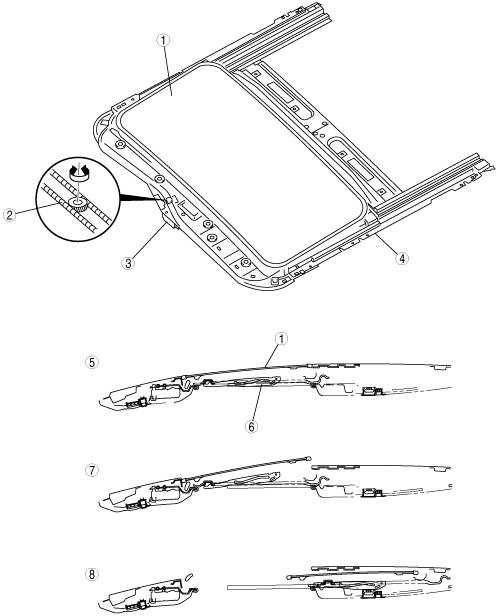

b3e0915t103

1
Glass panel
2
Drive cable
3
Sunroof motor
4
Frame
5
Fully closed
6
Guide
7
Tilt up
8
Fully open
