REAR SPOILER REMOVAL/INSTALLATION

id091600801600

4SD

1.  Remove the nuts.

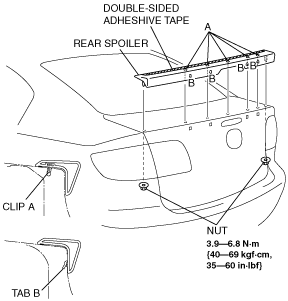

am3uuw00000076

2.  While cutting the double-sided adhesive tape using a flathead screwdriver or a razor, separate the rear spoiler from the trunk lid.

Warning

•  Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

3.  Pull the rear spoiler upward, then disengage clips A and tabs B from the trunk lid.

4.  Remove the rear spoiler.

5.  Install in the reverse order of removal.

(1)  Attach double‐sided adhesive tape to the rear spoiler as shown in the figure.

am3uuw00000077

5HB

1.  Remove the liftgate upper trim. (SeeLIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

2.  Remove the bolts and nut.

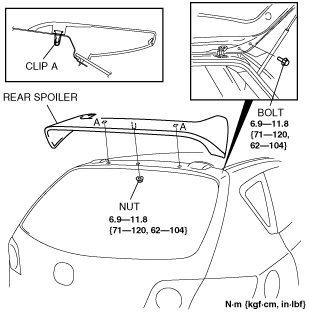

am3uuw00000078

3.  Pull the rear spoiler upward, then disengage clips A from the liftgate.

4.  Remove the rear spoiler.

5.  Install in the reverse order of removal.

Mazda3 MPS

1.  Disconnect the negative battery cable.

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

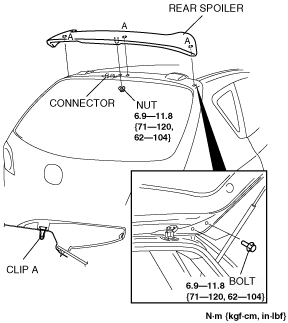

am3uuw00000265

4.  Remove the bolts and nut.

5.  Pull the rear spoiler upward, then disengage clips A from the liftgate.

6.  Remove the rear spoiler.

7.  Install in the reverse order of removal.
