REAR DOOR GARNISH REMOVAL/INSTALLATION

id091600804200

1.  Remove the sail garnish. (See SAIL GARNISH REMOVAL/INSTALLATION.)

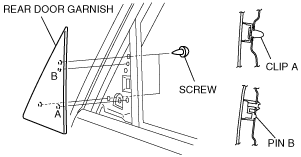

2.  Remove the screws.

am3zzw00002205

3.  Disengage clip A from the body by squeezing it from inside of the vehicle, and remove the rear door garnish.

4.  Install in the reverse order of removal.
