INNER GARNISH REMOVAL/INSTALLATION

id091700801000

1.  Disconnect the negative battery cable.

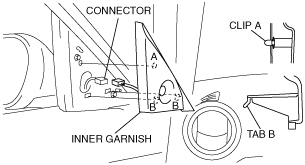

2.  Pull the inner garnish outward and detach clip A.

am3zzw00002136

3.  Disconnect the connector.

4.  Detach the tabs B and remove the inner garnish.

5.  Install in the reverse order of removal.
