FRONT SCUFF PLATE REMOVAL/INSTALLATION

id091700801400

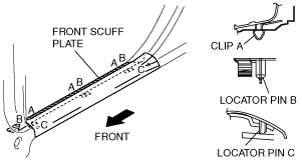

1.  Pull the front scuff plate upward, detach clips A, locator pins B and C from the body, and then remove the front scuff plate.

am3zzw00002138

2.  Install in the reverse order of removal.
