REAR SCUFF PLATE REMOVAL/INSTALLATION

id091700801500

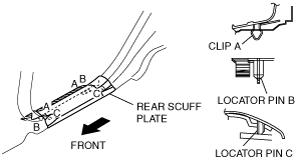

1.  Pull the rear scuff plate upward, detach clips A, locator pins B and C from the body, and then remove the rear scuff plate.

am3zzw00002137

2.  Install in the reverse order of removal.
