TRUNK END TRIM REMOVAL/INSTALLATION

id091700803400

1.  Remove the fasteners.

am3zzw00002132

am3zzw00002133

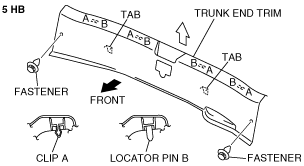

2.  Pull the trunk end trim upward, then detach clips A, locator pins B and tabs.

3.  Remove the trunk end trim.

4.  Install in the reverse order of removal.
