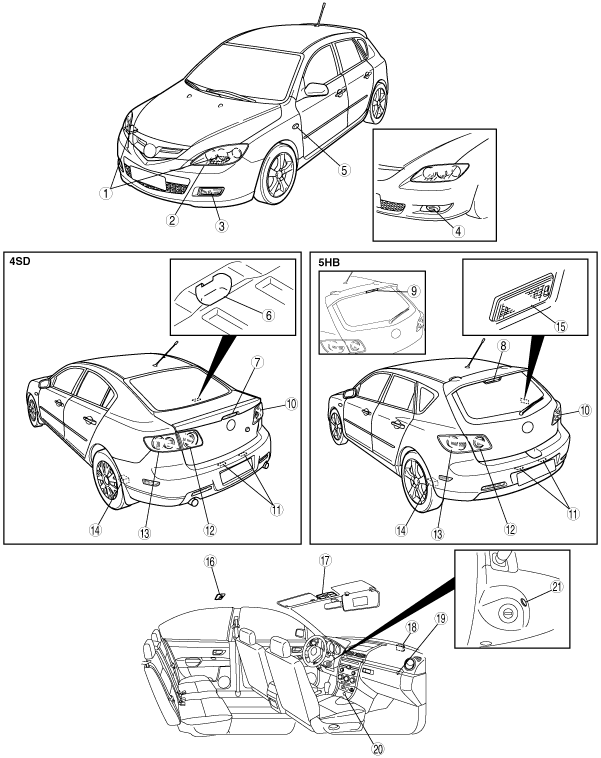

LIGHTING SYSTEMS STRUCTURAL VIEW
id091800100300
am3zzn00000688
|
|
1
|
Discharge headlight control module
|
|
2
|
Front combination light
|
|
3
|
Front fog light (sport type)
|
|
4
|
Front fog light (standard type)
|
|
5
|
Front side turn light
|
|
6
|
Trunk compartment light
|
|
7
|
High-mount brake light
|
|
8
|
High-mount brake light (in-vehicle type)
|
|
9
|
High-mount brake light (built-into rear spoiler type)
|
|
10
|
Inboard light
|
|
11
|
License plate light
|
|
12
|
Rear fog light
|
|
13
|
Rear combination light
|
|
14
|
Auto leveling sensor
|
|
15
|
Cargo compartment light
|
|
16
|
Interior light
|
|
17
|
Map light
|
|
18
|
Auto leveling control module
|
|
19
|
Glove compartment light
|
|
20
|
Ashtray illumination
|
|
21
|
Ignition key Illumination
|
