ROOM LIGHT CONTROL SYSTEM OPERATION

id091800101200

Conditions before operation

(Conditions which must be satisfied)

Operation condition

Interior light

Cancel condition

(When any condition satisfied)

Illumination time

Brightness

•  Turn the ignition switch to the LOCK or ACC position.

•  All doors are closed.
(All latch switches are off.)

Any door open. (Any latch switch is on.)

Approx.5 min

100 %

•  All doors are closed except liftgate.
(Any latch switch is off except liftgate.)

•  After illumination time.^*1

•  Key extracted from steering lock.
(Key reminder switch is off.)

•  All doors are closed.
(All latch switches are off.)

•  Driver’s door lock knob is locked.
(Door lock-link switch is in lock position.)

Driver’s door lock knob is unlocked.

(Door lock-link switch is in unlock position.)

Approx.30 s

60 %

•  Turn the ignition switch to the ON position.

•  Any door open except liftgate. (Any latch switch is on except liftgate.)

•  Driver’s door lock knob is locked.
(Door lock-link switch is in lock position.)

•  After illumination time.^*1

•  Key inserted into steering lock.
(Key reminder switch is on.)

•  All doors are closed.
(All latch switches are off.)

Key extracted from steering lock.

(Key reminder switch is off.)

Approx.15 s

60 %

•  Turn the ignition switch to the ON position.

•  Driver’s door lock knob is locked.
(Door lock-link switch is in lock position.)

•  After illumination time.^*1

•  Turn the ignition switch to the LOCK or ACC position.

•  Any door open.
(Any latch switch is on.)

•  Driver’s door lock knob is unlocked.
(Door lock-link switch is in unlock position.)

All doors are closed.

(All latch switches are off.)

Approx.15 s

60 %

•  Turn the ignition switch to the ON position.

•  Any door open except liftgate. (Any latch switch is on except liftgate.)

•  Driver’s door lock knob is locked.
(Door lock-link switch is in lock position.)

•  After illumination time.^*1

Conditions before operation (Conditions which must be satisfied)	Operation condition	Interior light	Cancel condition (When any condition satisfied)
• Turn the ignition switch to the LOCK or ACC position. • All doors are closed. (All latch switches are off.)	Any door open. (Any latch switch is on.)	Approx.5 min	100 %	• All doors are closed except liftgate. (Any latch switch is off except liftgate.) • After illumination time.^*1
• Key extracted from steering lock. (Key reminder switch is off.) • All doors are closed. (All latch switches are off.) • Driver’s door lock knob is locked. (Door lock-link switch is in lock position.)	Driver’s door lock knob is unlocked. (Door lock-link switch is in unlock position.)	Approx.30 s	60 %	• Turn the ignition switch to the ON position. • Any door open except liftgate. (Any latch switch is on except liftgate.) • Driver’s door lock knob is locked. (Door lock-link switch is in lock position.) • After illumination time.^*1
• Key inserted into steering lock. (Key reminder switch is on.) • All doors are closed. (All latch switches are off.)	Key extracted from steering lock. (Key reminder switch is off.)	Approx.15 s	60 %	• Turn the ignition switch to the ON position. • Driver’s door lock knob is locked. (Door lock-link switch is in lock position.) • After illumination time.^*1
• Turn the ignition switch to the LOCK or ACC position. • Any door open. (Any latch switch is on.) • Driver’s door lock knob is unlocked. (Door lock-link switch is in unlock position.)	All doors are closed. (All latch switches are off.)	Approx.15 s	60 %	• Turn the ignition switch to the ON position. • Any door open except liftgate. (Any latch switch is on except liftgate.) • Driver’s door lock knob is locked. (Door lock-link switch is in lock position.) • After illumination time.^*1

*1 :After interior light is turned off according to this cancel condition, the light will illuminate again when either of the following conditions are satisfied:

• After all doors are closed, then any door is reopened. (After all door switches are off, any door switch is on.)

• After all doors are closed, then ignition switch is at the ON position. (After all door switches are off, IG on.)

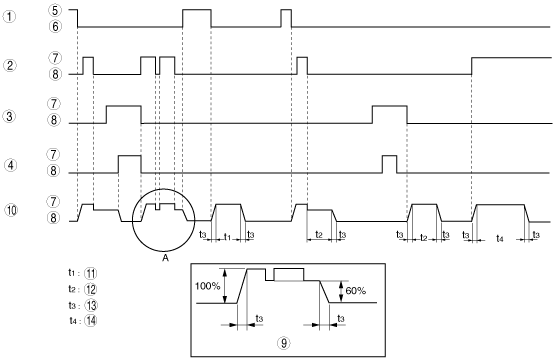

am3zzn00000915

1

Door lock-link switch

2

Latch switch

3

Key reminder switch

4

IG 1

5

Lock

6

Unlock

7

ON

8

OFF

9

View A

10

Map light/Interior light

11

Approx. 30 s

12

Approx. 15 s

13

Approx. 1 s

14

Approx. 5 min

Conditions before operation (Conditions which must be satisfied)	Operation condition	Interior light		Cancel condition (When any condition satisfied)
	Operation condition	Illumination time	Brightness	Cancel condition (When any condition satisfied)
• Turn the ignition switch to the LOCK or ACC position. • All doors are closed. (All latch switches are off.)	Any door open. (Any latch switch is on.)	Approx.5 min	100 %	• All doors are closed except liftgate. (Any latch switch is off except liftgate.) • After illumination time.^*1
• Key extracted from steering lock. (Key reminder switch is off.) • All doors are closed. (All latch switches are off.) • Driver’s door lock knob is locked. (Door lock-link switch is in lock position.)	Driver’s door lock knob is unlocked. (Door lock-link switch is in unlock position.)	Approx.30 s	60 %	• Turn the ignition switch to the ON position. • Any door open except liftgate. (Any latch switch is on except liftgate.) • Driver’s door lock knob is locked. (Door lock-link switch is in lock position.) • After illumination time.^*1
• Key inserted into steering lock. (Key reminder switch is on.) • All doors are closed. (All latch switches are off.)	Key extracted from steering lock. (Key reminder switch is off.)	Approx.15 s	60 %	• Turn the ignition switch to the ON position. • Driver’s door lock knob is locked. (Door lock-link switch is in lock position.) • After illumination time.^*1
• Turn the ignition switch to the LOCK or ACC position. • Any door open. (Any latch switch is on.) • Driver’s door lock knob is unlocked. (Door lock-link switch is in unlock position.)	All doors are closed. (All latch switches are off.)	Approx.15 s	60 %	• Turn the ignition switch to the ON position. • Any door open except liftgate. (Any latch switch is on except liftgate.) • Driver’s door lock knob is locked. (Door lock-link switch is in lock position.) • After illumination time.^*1

1	Door lock-link switch
2	Latch switch
3	Key reminder switch
4	IG 1
5	Lock
6	Unlock
7	ON
8	OFF
9	View A
10	Map light/Interior light
11	Approx. 30 s
12	Approx. 15 s
13	Approx. 1 s
14	Approx. 5 min
