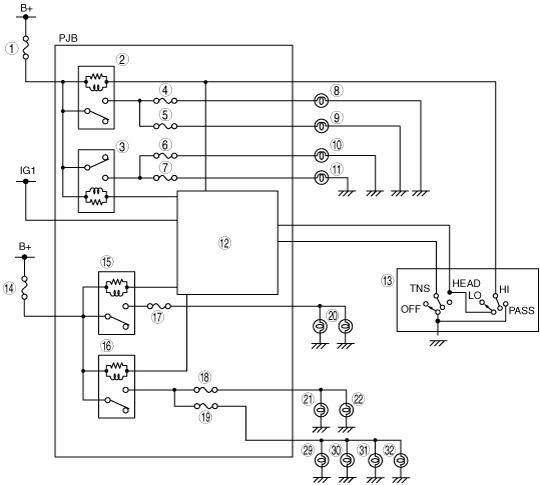

RUNNING LIGHT SYSTEM WIRING DIAGRAM
id091800103200
am3zzn00000768
|
|
1
|
HEAD 40 A fuse
|
|
2
|
Headlight high relay
|
|
3
|
Headlight low relay
|
|
4
|
HEAD HIGH L 10 A fuse
|
|
5
|
HEAD HIGH R 10 A fuse
|
|
6
|
HEAD LOW L 15 A fuse
|
|
7
|
HEAD LOW R 15 A fuse
|
|
8
|
Headlight HI (LH)
|
|
9
|
Headlight HI (RH)
|
|
10
|
Headlight LO (LH)
|
|
11
|
Headlight LO (RH)
|
|
12
|
Microcomputer
|
|
13
|
Light switch
|
|
14
|
BTN 40 A fuse
|
|
15
|
TNS relay
|
|
16
|
Running light relay
|
|
17
|
ILLUMI 7.5 A fuse
|
|
18
|
TAIL L 7.5 A fuse
|
|
19
|
TAIL R 7.5 A fuse
|
|
20
|
Illumination light
|
|
21
|
Parking light (LH)
|
|
22
|
Taillight LH
|
|
23
|
License plate light (LH)
|
|
24
|
License plate light (RH)
|
|
25
|
Parking light (RH)
|
|
26
|
Taillight RH
|
