DISCHARGE HEADLIGHT CONTROL MODULE CONSTRUCTION/OPERATION

id091800103300

Warning

• Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. (See Mazda 3 Workshop Manual.)

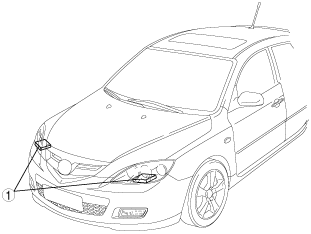

• Built into the headlight and installed on the headlight lower side.

am3zzn00000692

1

Discharge headlight control module

• Switches the direct current from the battery to alternating current (25,000 V) and optimally controls the current supply output to the bulb.
