FRONT FOG LIGHT BULB REMOVAL/INSTALLATION [MZR-CD (RF Turbo)]

id091800802354

Standard Type

1.  Disconnect the negative battery cable.

2.  Slightly bend back the mudguard.

3.  To remove the front fog light bulb (LH), perform the following procedure:

(1)  Slightly bend back the service hole cover.

am3zzw00004235

4.  Disconnect the front fog light bulb connector and remove the front fog light bulb by turning it in the direction of the arrow.

am3zzw00001809

Caution

•  A halogen bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of the bulb will be shortened. When handling the bulb, hold the flange, not the glass.

5.  Install in the reverse order of removal.

Sport Type

1.  Disconnect the negative battery cable.

2.  Slightly bend back the mudguard.

3.  To remove the front fog light bulb (LH), perform the following procedure:

(1)  Slightly bend back the service hole cover.

am3zzw00004235

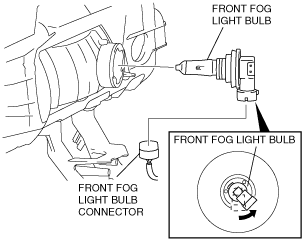

4.  Disconnect the front fog light bulb connector and remove the front fog light bulb by turning it in the direction of the arrow.

am3zzw00001924

Caution

•  A halogen bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of the bulb will be shortened. When handling the bulb, hold the flange, not the glass.

5.  Install in the reverse order of removal.
