LIGHT SWITCH INSPECTION

id091800802900

1.  Verify that the continuity between the light switch terminals is as indicated in the table.

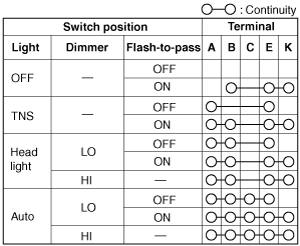

Headlight Switch

b3e0918wa12

•  If not as indicated in the table, replace the light switch.

b3e0918w139

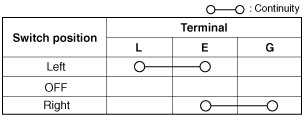

Turn Switch

b3e0918wa13

b3e0918w141
