HAZARD WARNING SWITCH REMOVAL/INSTALLATION

id091800803000

1.  Disconnect the negative battery cable.

2.  Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION.)

3.  Remove the dashboard center panel. (See DASHBOARD CENTER PANEL REMOVAL/INSTALLATION.)

4.  Disconnect the hazard warning switch connector.

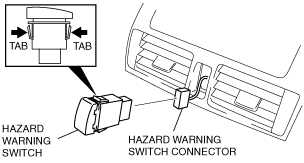

am3zzw00003663

5.  Squeeze the tabs of hazard warning switch and pull it outward to remove it.

6.  Install in the reverse order of removal.
