INBOARD LIGHT BULB REMOVAL/INSTALLATION

id091800806000

5HB

1.  Disconnect the negative battery cable.

2.  Remove the service hole cover.

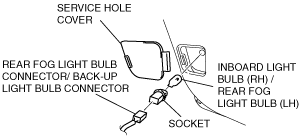

am3zzw00001839

3.  Disconnect the rear fog light bulb connector. (driver-side)

4.  Disconnect the back-up light bulb connector. (passenger-side)

5.  Remove the socket.

6.  Remove the rear fog light bulb. (driver-side)

7.  Remove the back-up light bulb. (passenger-side)

8.  Install in the reverse order of removal.
