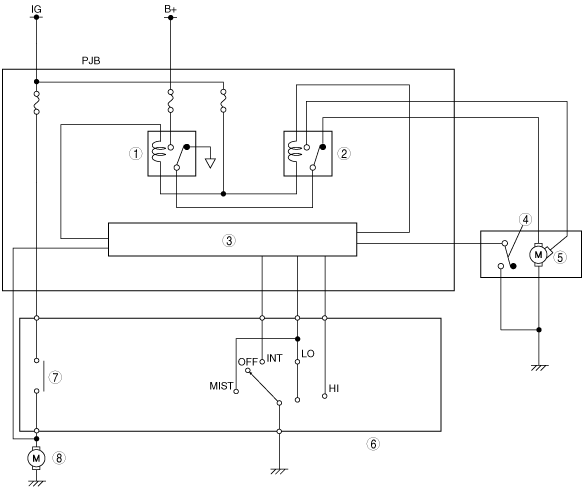

WINDSHIELD WIPER SYSTEM WIRING DIAGRAM
id091900100500
b3e0919t102
|
|
1
|
Windshield wiper relay
|
|
2
|
Windshield wiper HI relay
|
|
3
|
Microcomputer
|
|
4
|
Auto-stop switch
|
|
5
|
Windshield wiper motor
|
|
6
|
Windshield wiper and washer switch
|
|
7
|
Windshield washer switch
|
|
8
|
Windshield washer motor
|
