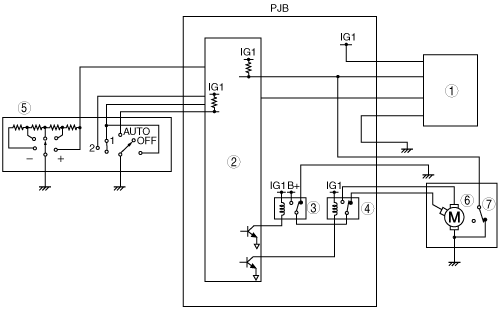

AUTO WIPER SYSTEM WIRING DIAGRAM
id091900101200
b3e0919t002
|
|
1
|
Rain sensor
|
|
2
|
Microcomputer
|
|
3
|
Windshield wiper relay
|
|
4
|
Windshield wiper HI relay
|
|
5
|
Wiper and washer switch
|
|
6
|
Windshield wiper motor
|
|
7
|
Auto-stop switch
|
