WASHER FLUID-LEVEL SENSOR FUNCTION

id091900101600

• Warns the driver that the washer fluid-level is low.

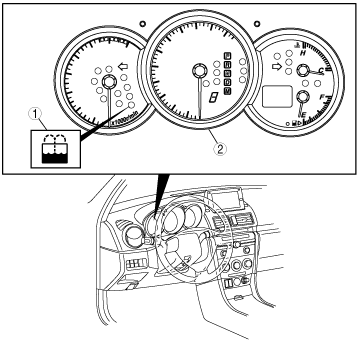

b3e0919t110

1

Washer fluid-level indicator light

2

Instrument cluster

b3e0919t117

1

Instrument cluster

2

Microcomputer

3

Washer fluid-level indicator light

4

Washer fluid-level sensor

1	Instrument cluster
2	Microcomputer
3	Washer fluid-level indicator light
4	Washer fluid-level sensor
