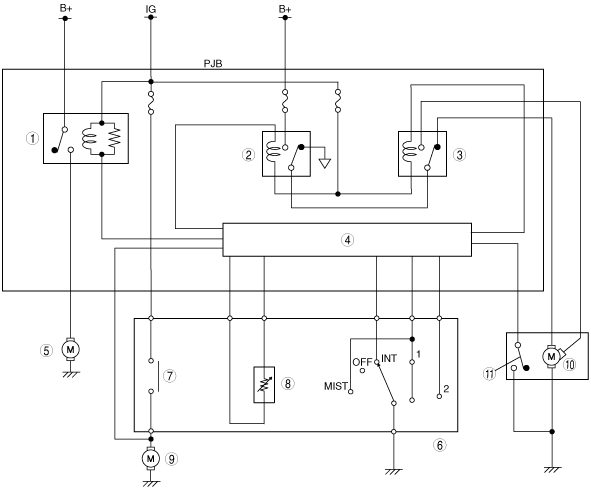

HEADLIGHT CLEANER SYSTEM WIRING DIAGRAM


id091900102400

b3e0919t115

1
Headlight cleaner relay
2
Windshield wiper relay
3
Windshield wiper HI relay
4
Microcomputer
5
Headlight cleaner motor
6
Windshield wiper and washer switch
7
Windshield washer switch
8
INT volume
9
Windshield washer motor
10
Windshield wiper motor
11
Auto-stop switch
