WINDSHIELD WIPER AND WASHER SWITCH INSPECTION

id091900800300

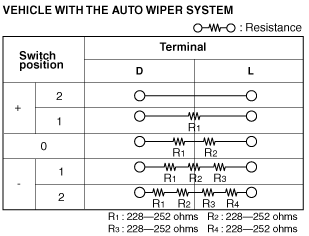

1.  Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.

b3e0919w127

b3e0919w110

•  If not as indicated in the table, replace the wiper and washer switch.

b3e0919w128

b3e0919w111
