WINDSHIELD WIPER MOTOR INSPECTION

id091900801100

1.  Disconnect the windshield wiper motor connector.

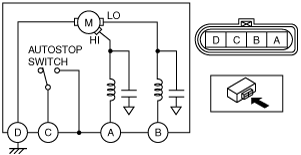

2.  Connect battery positive voltage to windshield wiper motor terminal A or B, and ground to terminal D, then verify that the windshield wipers operate as shown in the table.

b3e0919w106

•  If the windshield wipers do not operate as indicated in the table, replace the windshield wiper motor.

b3e0919w107
