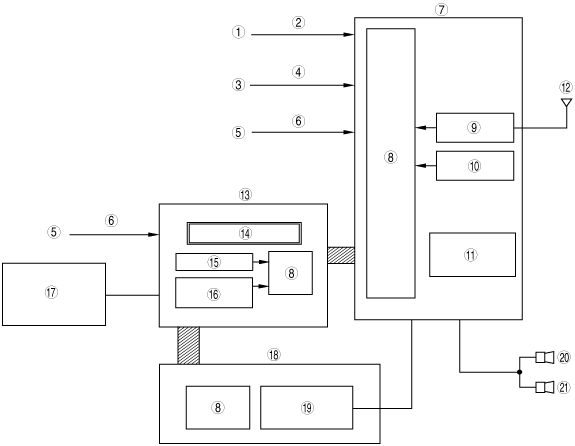

CAR-NAVIGATION SYSTEM BLOCK DIAGRAM
id092000101000
am3zzn00000642
|
|
1
|
Instrument cluster
|
|
2
|
Vehicle speed signal
|
|
3
|
TR switch (ATX) or back-up light switch (MTX)
|
|
4
|
R-range signal
|
|
5
|
Parking brake switch
|
|
6
|
Parking brake signal
|
|
7
|
Car-navigation unit
|
|
8
|
CPU
|
|
9
|
GPS receiver
|
|
10
|
Gyro sensor
|
|
11
|
DVD driver
|
|
12
|
GPS antenna
|
|
13
|
LCD unit
|
|
14
|
LCD
|
|
15
|
TILT switch
|
|
16
|
OPEN/CLOSE switch
|
|
17
|
Car-navigation control switch
|
|
18
|
Audio unit
|
|
19
|
Power amplifier
|
|
20
|
Front tweeter (driver side)
|
|
21
|
Front door speaker (driver side)
|
