b3e0920t101
|
|
1
|
LCD unit
|
|
2
|
OPEN/CLOSE button
|
|
3
|
TILT button
|
LCD UNIT CONSTRUCTION
id092000102100

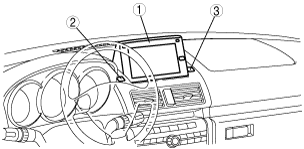

Structural View
b3e0920t101
|
|
1
|
LCD unit
|
|
2
|
OPEN/CLOSE button
|
|
3
|
TILT button
|
Terminal Layout and Signal
|
Terminal |
Signal |
|
|---|---|---|
|
24-pin connector |
||
 |
1A
|
Video (B)
|
|
1B
|
Video (G)
|
|
|
1C
|
Video (composite sync)
|
|
|
1D
|
Video (R)
|
|
|
1E
|
Video GND
|
|
|
1F
|
Video GND
|
|
|
1G
|
Shield GND
|
|
|
1H
|
Video input
|
|
|
1I
|
Monitor serial output
|
|
|
1J
|
Shield GND
|
|
|
1K
|
Monitor serial input
|
|
|
1L
|
BUS (-)
|
|
|
1M
|
Rear cam
|
|
|
1N
|
BUS (+)
|
|
|
1O
|
ACC
|
|
|
1P
|
GND
|
|
|
1Q
|
B+
|
|
|
1R
|
Parking brake signal
|
|
|
1S
|
Shield GND
|
|
|
1T
|
R range signal
|
|
|
1U
|
UART2
|
|
|
1V
|
Illumination (+)
|
|
|
1W
|
UART1
|
|
|
1X
|
Illumination (-)
|
|
|
Terminal |
Signal |
|
|---|---|---|
|
6-pin connector |
||
 |
2A
|
Power
|
|
2B
|
GND
|
|
|
2C
|
Illumination
|
|
|
2D
|
—
|
|
|
2E
|
Remote data
|
|
|
2F
|
Shield GND
|
|
|
Terminal |
Signal |
|
|---|---|---|
|
1-pin connector |
||
 |
3A
|
GND
|
