CAR-NAVIGATION CONTROL SWITCH CONSTRUCTION/OPERATION

id092000103100

Construction

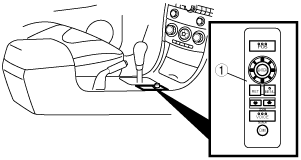

• The car-navigation control switch is located on the console.

am3zzn00000650

1

Car-navigation control switch

Operation

am3zzn00000651

No.

Button (component)

Function

1

[POS (Position)] button

Displays the current position.

2

Joystick

Selects items by tilting it up, down, right and left.

3

[ENTER] button

Executes a selected item.

4

[RET] button

Returns to the previous screen.

5

[MENU] button

Selects menus.

6

[ZOOM] button

Changes the map scale.

7

[VOICE] button

Initiates vocal guidance for route maneuvers.

8

[DIM] button

Cancel the night mode.

No.	Button (component)	Function
1	[POS (Position)] button	Displays the current position.
2	Joystick	Selects items by tilting it up, down, right and left.
3	[ENTER] button	Executes a selected item.
4	[RET] button	Returns to the previous screen.
5	[MENU] button	Selects menus.
6	[ZOOM] button	Changes the map scale.
7	[VOICE] button	Initiates vocal guidance for route maneuvers.
8	[DIM] button	Cancel the night mode.
