FRONT ANTENNA FEEDER INSPECTION

id092000801900

Type A

1.  Verify that there is no continuity between the front antenna feeder terminal A and B.

2.  Verify that the continuity is as indicated in the table.

am3zzw00004867

•  If not as indicated in the table, replace the front antenna feeder.

am3zzw00004868

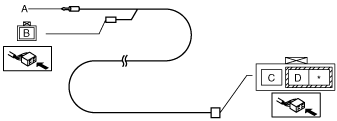

Type B

1.  Verify that the continuity is as indicated in the table.

am3zzw00004869

am3zzw00004870
