CONDENSER REMOVAL/INSTALLATION

id092000803000

1.  Disconnect the negative battery cable.

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

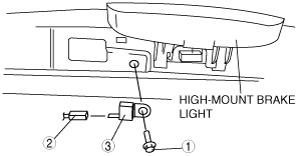

3.  Remove in the order indicated in the table.

am3zzw00003683

1	Bolt
2	Connector
3	Condenser

4.  Install in the reverse order of removal.
