WOOFER INSPECTION

id092000805100

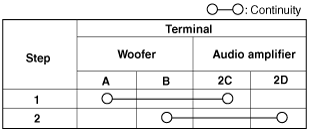

1.  Verify that the continuity between the audio amplifier and woofer is as indicated in the table.

d3j920zwb003

•  If not as specified in the table, replace the related wiring harnesses.

d3j920zwb004
