IGNITION SWITCH INSPECTION

id092100800100

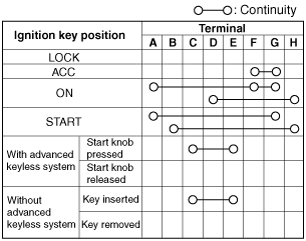

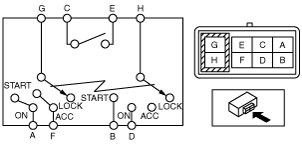

1.  Verify that the continuity between the ignition switch terminals is as indicated in the table.

am3zzw00001955

•  If not as indicated in the table, replace the ignition switch.

am3zzw00013188
