FUEL GAUGE SENDER UNIT INSPECTION [L3 Turbo]

id0922000121d7

1.  Remove the fuel gauge sender unit. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [L3 Turbo].)

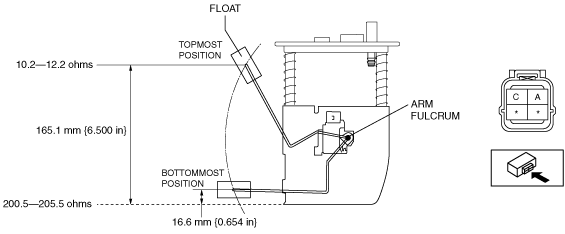

2.  Verify that the resistance between terminals A and C of the fuel gauge sender unit based on the height of the float as shown in the figure.

am3zzw00010734

•  If they are not as shown in the figure, replace the fuel gauge sender unit. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [L3 Turbo].)
