FUEL GAUGE SENDER UNIT INSPECTION [ZJ, ZY, Z6]

id0922000121d9

1.  Remove the fuel gauge sender unit. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [ZJ, ZY, Z6].)

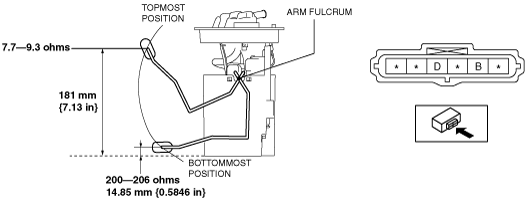

2.  Verify that the resistance between terminals B and D of the fuel gauge sender unit based on the height of the float as shown in the figure.

am3zzw00010733

•  If they are not as shown in the figure, replace the fuel gauge sender unit. FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [ZJ, ZY, Z6].)
