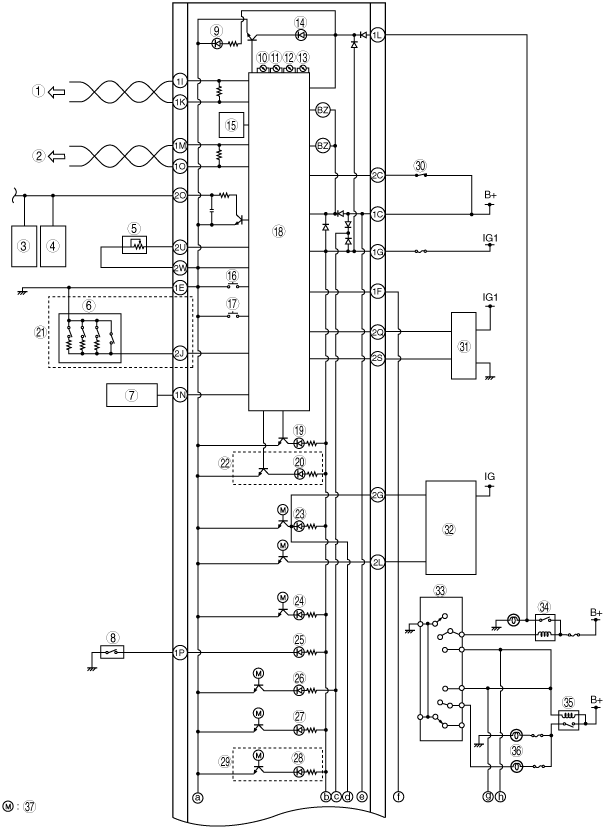

am3zzn00001667
INSTRUMENT CLUSTER SYSTEM WIRING DIAGRAM
id092200101300
am3zzn00001667
|
|
1
|
CAN system-related module (HS-CAN)
|
|
2
|
CAN system-related module (MS-CAN)
|
|
3
|
Car-navigation unit
|
|
4
|
Auto leveling control unit
|
|
5
|
Fuel gauge sender unit
|
|
6
|
Cruise control switch
|
|
7
|
Keyless control module (with advanced keyless system)
|
|
8
|
Washer fluid-level sensor
|
|
9
|
TNS indicator light
|
|
10
|
Water temperature gauge
|
|
11
|
Fuel gauge
|
|
12
|
Tachometer
|
|
13
|
Speedometer
|
|
14
|
Instrument cluster illumination
|
|
15
|
Odometer/tripmeter
|
|
16
|
Tripmeter switch
|
|
17
|
Dimmer switch
|
|
18
|
Microcomputer
|
|
19
|
Fuel-level warning light
|
|
20
|
Glow indicator light
|
|
21
|
MZ-CD 1.6 (Y6)
|
|
22
|
MZ-CD 1.6 (Y6), MZR-CD (RF Turbo)
|
|
23
|
Generator warning light
|
|
24
|
MIL
|
|
25
|
Washer fluid level warning light
|
|
26
|
Door ajar warning light
|
|
27
|
Seat belt warning light
|
|
28
|
AT warning light
|
|
29
|
ATX only
|
|
30
|
Key reminder switch (ignition switch)
|
|
31
|
Coil antenna
|
|
32
|
Passenger seat belt warning light (rear seat belt reminder indicator)
|
|
33
|
Light switch
|
|
34
|
TNS relay (passenger junction box (PJB))
|
|
35
|
Headlight relay (passenger junction box (PJB))
|
|
36
|
Headlight
|
|
37
|
To microcomputer
|

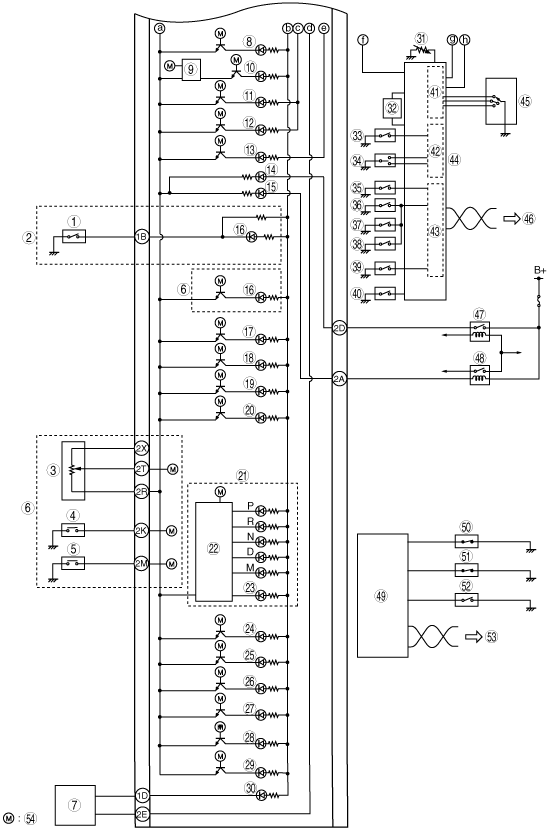

am3zzn00001670
|
|
1
|
Oil pressure switch
|
|
2
|
Except MZ-CD 1.6 (Y6)
|
|
3
|
Accelerator pedal position sensor
|
|
4
|
Clutch switch
|
|
5
|
Brake switch
|
|
6
|
MZ-CD 1.6 (Y6)
|
|
7
|
Auto leveling control module
|
|
8
|
High-beam indicator light
|
|
9
|
Circuit for failure detection
|
|
10
|
Air bag system warning light
|
|
11
|
Turn indicator light (LH)
|
|
12
|
Turn indicator light (RH)
|
|
13
|
Security light
|
|
14
|
Front fog indicator light
|
|
15
|
Rear fog indicator light
|
|
16
|
Oil pressure warning light
|
|
17
|
DSC indicator light
|
|
18
|
DSC OFF light
|
|
19
|
ABS warning light
|
|
20
|
Brake system warning light
|
|
21
|
ATX only
|
|
22
|
Selector indicator drive circuit
|
|
23
|
Gear position indicator
|
|
24
|
Cruise main indicator light
|
|
25
|
Cruise set indicator light
|
|
26
|
Keyless warning light
|
|
27
|
Keyless indicator light
|
|
28
|
EHPAS warning light
|
|
29
|
Diesel particulate filter indicator light
|
|
30
|
Headlight auto leveling warning light
|
|
31
|
Panel light control switch
|
|
32
|
Ambient temperature sensor
|
|
33
|
Hazard warning switch
|
|
34
|
Turn switch
|
|
35
|
Door latch switch (driver-side)
|
|
36
|
Door latch switch (passenger-side)
|
|
37
|
Door latch switch (RR)
|
|
38
|
Door latch switch (RL)
|
|
39
|
Liftgate latch switch
|
|
40
|
Parking brake switch
|
|
41
|
Headlight control
|
|
42
|
Flasher control
|
|
43
|
Door lock control
|
|
44
|
Passenger junction box (PJB)
|
|
45
|
Light switch
|
|
46
|
Can system-related module (MS-CAN)
|
|
47
|
Front fog light relay
|
|
48
|
Rear fog light relay
|
|
49
|
SAS control module
|
|
50
|
Buckle switch (driver-side)
|
|
51
|
Buckle switch (passenger-side)
|
|
52
|
Occupancy sensor
|
|
53
|
Can system-related module (HS-CAN)
|
|
54
|
To microcomputer
|
