KEY REMINDER WARNING ALARM CONSTRUCTION/OPERATION
id092200101400

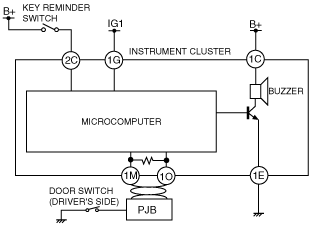

System Wiring Diagram
Operation
• The buzzer in the instrument cluster sounds when all the following three conditions are met:
-
― The ignition switch is in the LOCK or ACC position.
― The key is in the steering lock (key reminder switch is on).
― The driver’s door is open (driver’s door switch is on).
