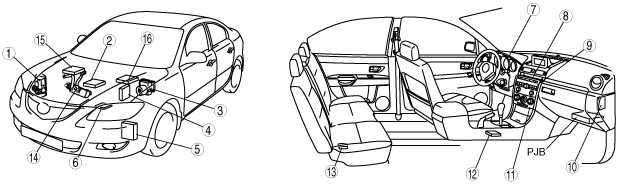

CAN SYSTEM STRUCTURAL VIEW
id094000101100
am3zzn00001704
|
|
1
|
EHPAS control module
|
|
2
|
PCM (ZJ, ZY, Z6 engine model)
|
|
3
|
DSC HU/CM (with DSC) or ABS HU/CM (with ABS)
|
|
4
|
PCM (LF, L3, L3 Turbo engine model)
|
|
5
|
PCM (MZ-CD 1.6 (Y6) engine model)
|
|
6
|
TCM (FS5A-EL)
|
|
7
|
Instrument cluster
|
|
8
|
Information display
|
|
9
|
Audio unit (base module)
|
|
10
|
Keyless control module (with advanced keyless system)
|
|
11
|
Climate control unit
|
|
12
|
SAS control module
|
|
13
|
Fuel additive control module (MZ-CD 1.6 (Y6) High power-Euro 4)
|
|
14
|
Water heater unit (MZR-CD (RF Turbo))
|
|
15
|
PCM (L.H.D.) (MZR-CD (RF Turbo))
|
|
16
|
PCM (R.H.D.) (MZR-CD (RF Turbo))
|
