PASSENGER JUNCTION BOX (PJB) WIRING DIAGRAM
id094000102000
am3zzn00000750
|
|
1
|
Microcomputer
|
|
2
|
Battery
|
|
3
|
Main fuse block
|
|
4
|
Ignition switch
|
|
5
|
To starting system
|
|
6
|
With headlight auto leveling system
|
|
7
|
Auto leveling control module
|
|
8
|
Light switch
|
|
9
|
Parking brake switch
|
|
10
|
Headlight HI relay
|
|
11
|
Headlight LO relay
|
|
12
|
TNS relay
|
|
13
|
Running light relay
|
|
14
|
With running light system
|
|
15
|
To main fuse block
|
|
16
|
Power outer mirror
|
|
17
|
To audio unit, keyless control module, car-navigation unit
|
|
18
|
Cigarette lighter
|
|
19
|
Headlight (LH) (high beam)
|
|
20
|
Headlight (RH) (high beam)
|
|
21
|
Headlight (LH) (low beam)
|
|
22
|
Headlight (RH) (low beam)
|
|
23
|
To headlight leveling switch
|
|
24
|
Taillight (RH)
|
|
25
|
Parking light (RH)
|
|
26
|
License plate light (LH)
|
|
27
|
License plate light (RH)
|
|
28
|
Taillight (LH)
|
|
29
|
Parking light (LH)
|
|
30
|
Without running light system
|

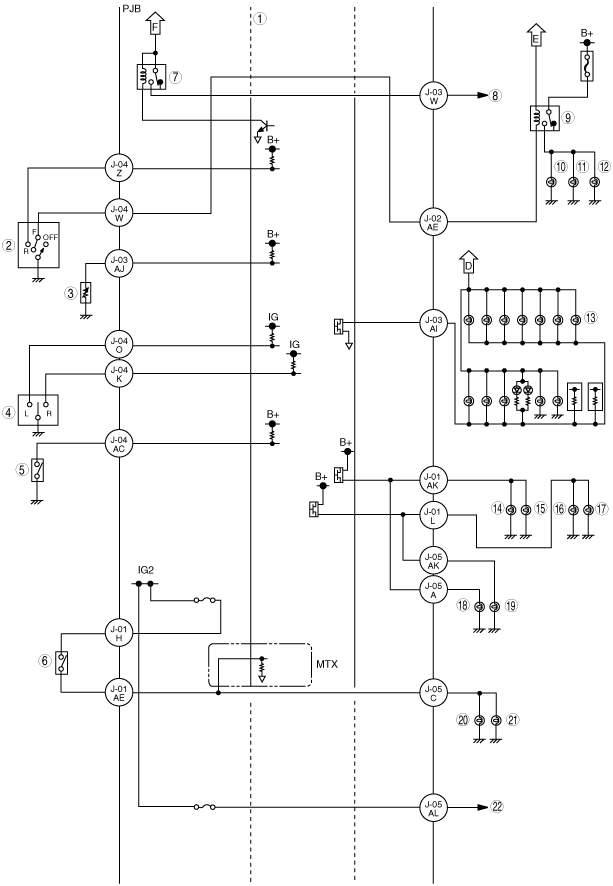

am3zzn00000751
|
|
1
|
Microcomputer
|
|
2
|
Fog light switch
|
|
3
|
Panel light control switch
|
|
4
|
Turn switch
|
|
5
|
Hazard warning switch
|
|
6
|
Back-up light switch
|
|
7
|
Rear fog light relay
|
|
8
|
Rear fog light
|
|
9
|
Front fog light relay
|
|
10
|
Front fog light (LH)
|
|
11
|
Front fog light (RH)
|
|
12
|
Front fog indicator light
|
|
13
|
Illumination lights
|
|
14
|
Front turn light (LH)
|
|
15
|
Side turn light (LH)
|
|
16
|
Front turn light (RH)
|
|
17
|
Side turn light (RH)
|
|
18
|
Rear turn light (LH)
|
|
19
|
Rear turn light (RH)
|
|
20
|
Back-up light (LH)
|
|
21
|
Back-up light (RH)
|
|
22
|
To sunroof
|

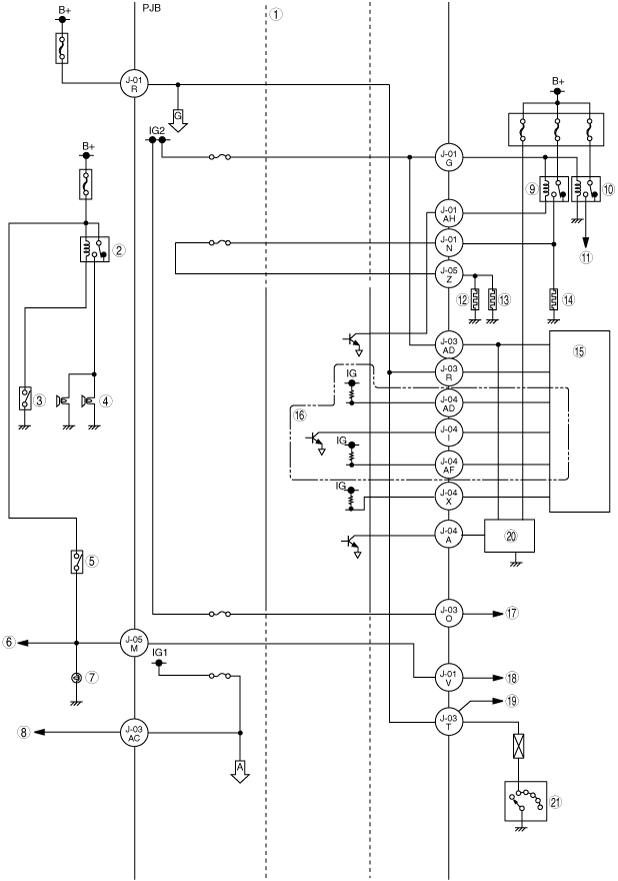

am3zzn00000752
|
|
1
|
Microcomputer
|
|
2
|
Horn relay
|
|
3
|
Horn switch
|
|
4
|
Horn
|
|
5
|
Brake switch
|
|
6
|
To brake light
|
|
7
|
Brake light
|
|
8
|
To instrument cluster
|
|
9
|
Rear window defroster relay
|
|
10
|
Blower relay
|
|
11
|
To blower motor
|
|
12
|
Heated outer mirror filament (LH)
|
|
13
|
Heated outer mirror filament (RH)
|
|
14
|
Rear window defroster
|
|
15
|
Climate control unit
|
|
16
|
Without full-auto air conditioner system
|
|
17
|
Seat warmer unit
|
|
18
|
To PCM
|
|
19
|
To instrument cluster
|
|
20
|
PTC heater
|
|
21
|
TR switch
|

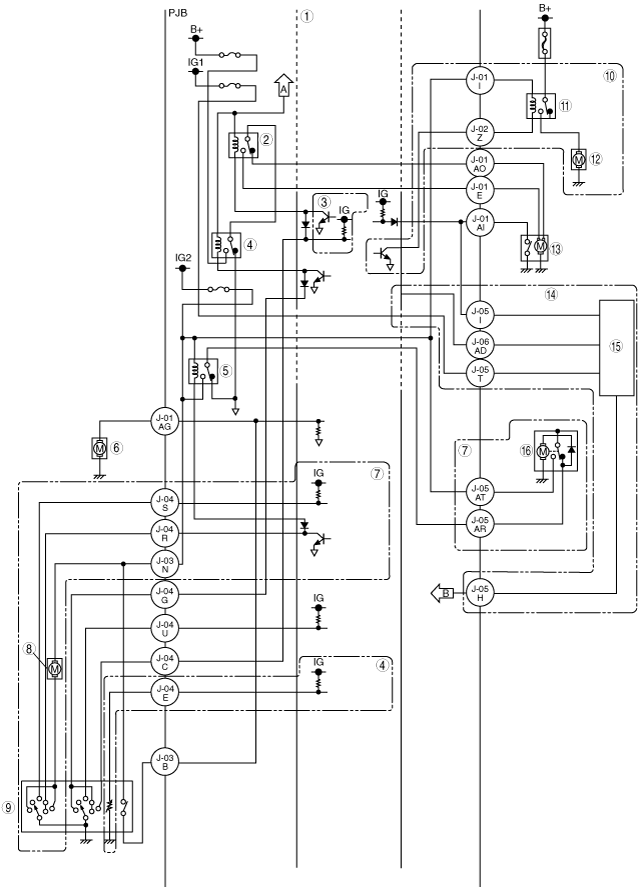

am3zzn00000753
|
|
1
|
Microcomputer
|
|
2
|
Windshield wiper HI relay
|
|
3
|
With auto wiper system
|
|
4
|
Windshield wiper relay
|
|
5
|
Rear wiper relay
|
|
6
|
Windshield washer motor
|
|
7
|
With rear wiper system
|
|
8
|
Rear washer motor
|
|
9
|
Windshield wiper and washer switch
|
|
10
|
Headlight cleaner system
|
|
11
|
Headlight cleaner relay
|
|
12
|
Headlight cleaner motor
|
|
13
|
Windshield wiper motor
|
|
14
|
With auto wiper system
|
|
15
|
Rain sensor
|
|
16
|
Rear wiper motor
|
am3zzn00000754
|
|
1
|
Microcomputer
|
|
2
|
Trunk compartment light
|
|
3
|
Cargo compartment light
|
|
4
|
Map light
|
|
5
|
Interior light
|
|
6
|
Driver-side door lock-link switch
|
|
7
|
Trunk lid key cylinder switch
|
|
8
|
Liftgate latch switch
|
|
9
|
Trunk lid latch switch
|
|
10
|
With double lock function
|
|
11
|
Door lock relay
|
|
12
|
Double lock relay
|
|
13
|
Door unlock relay
|
|
14
|
Trunk lid unlock relay
|
|
15
|
Trunk lid unlock actuator
|
|
16
|
For optional parts power supply
|
|
17
|
To car-navigation unit, audio unit
|
|
18
|
Keyless control module
|
|
19
|
Ignition key illumination
|
|
20
|
Door lock actuator (driver-side)
|
|
21
|
Door lock actuator (passenger-side)
|
|
22
|
Door lock actuator (left rear)
|
|
23
|
Door lock actuator (right rear)
|
|
24
|
Liftgate lock actuator
|
am3zzn00000755
|
|
1
|
Microcomputer
|
|
2
|
Front door latch switch (LH)
|
|
3
|
Front door latch switch (RH)
|
|
4
|
Rear door latch switch (LH)
|
|
5
|
Rear door latch switch (RH)
|
|
6
|
With full-auto air conditioner system
|
|
7
|
Ambient temperature sensor
|
|
8
|
Brake fluid level sensor
|
|
9
|
CAN system-related module (PJB, Climate control unit, SAS control module, Audio unit (base module))
|
|
10
|
To power window subswitch
|
|
11
|
To power window main switch
|
|
12
|
To sunroof
|
|
13
|
To DLC-2
|
|
14
|
To SAS control module
|
|
15
|
To EHPAS control module
|
|
16
|
Bonnet latch switch
|
|
17
|
Intruder sensor
|
|
18
|
Theft-deterrent siren
|
|
19
|
With theft-deterrent system
|
