PASSENGER JUNCTION BOX (PJB) INSPECTION

id094000800600

1. Remove the glove compartment.

2. Remove the PJB with the connector connected.

3. Measure the voltage at each terminal and inspect for the continuity between the terminals and ground is as indicated in the Terminal Voltage Tables (Reference).

• If the voltage or continuity is not as specified in the Terminal Voltage Table (Reference), inspect the parts under “Inspection item (s)”.

― If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the PJB.

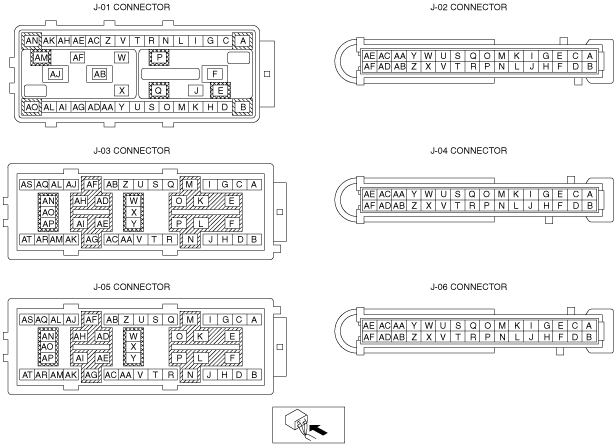

Terminal Voltage Table (Reference)

am3zzw00002260

Terminal

Signal

Connected to

Measurement condition

Voltage (V)/Continuity

Inspection item (s)

J-01 A

—

—

—

—

—

J-01 B

Power supply

Main fuse block

Ignition switch at ON

B+

•  Ignition switch

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-01 C

Headlight (RH) control

Headlight (RH) (low beam)

Light switch at headlight position

B+

•  Headlight (RH) (low beam)

•  Related wiring harnesses

Light switch off

1.0 or less

J-01 D

Headlight (LH) control

Headlight (LH) (low beam)

Light switch at headlight position

B+

•  Headlight (LH) (low beam)

•  Related wiring harnesses

Light switch off

1.0 or less

J-01 E

Windshield wiper motor control

Windshield wiper motor (high speed)

Wiper switch at high position

B+

•  Windshield wiper motor

•  Related wiring harnesses

Other

1.0 or less

J-01 F

PJB power supply

Main fuse block

Under any condition

B+

•  Related wiring harnesses

J-01 G

Blower relay, rear window defroster relay power supply

Blower relay, rear window defroster relay

Ignition switch at ON

B+

•  Blower relay

•  Rear window defroster relay

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-01 H

Back-up light power supply

Back-up light switch

Ignition switch at ON

B+

•  Back-up light switch

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-01 I

Headlight cleaner relay power supply

Headlight cleaner relay

Ignition switch at ON

B+

•  Headlight cleaner relay

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-01 J

—

—

—

—

—

J-01 K

Parking light (RH) control

Parking light (RH)

Ignition switch off

Light switch at TNS position

B+

•  Parking light (RH)

•  Related wiring harnesses

Light switch at OFF position

1.0 or less

J-01 L

Front turn light (RH) control

Front turn light (RH)

Turn switch (RH) on

Front turn light (RH) flashes

Alternates between 1.0 or less and B+

•  Front turn light (RH)

•  Related wiring harnesses

Hazard warning switch on

Other

1.0 or less

J-01 M

High beam (RH) control

Headlight (RH) (high beam)

Ignition switch off

Light switch at high position or flash-to-pass

B+

•  Headlight (RH) (high beam)

•  Related wiring harnesses

Other

1.0 or less

J-01 N

Heated outer mirror power supply

Rear window defroster relay

Rear window defroster switch on

B+

•  Rear window defroster relay

•  Related wiring harnesses

Rear window defroster switch off

1.0 or less

J-01 O

High beam (LH) control

Headlight (LH) (high beam)

Ignition switch off

Light switch at high position or flash-to-pass

B+

•  Headlight (LH) (high beam)

•  Related wiring harnesses

Other

1.0 or less

J-01 P

—

—

—

—

—

J-01 Q

Power supply

Main fuse block

Ignition switch at ON

B+

•  Ignition switch

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-01 R

PJB power supply

Main fuse block

Under any condition

B+

•  Related wiring harnesses

J-01 S

Front fog light relay power supply

Front fog light relay

Ignition switch off

Light switch at TNS position

B+

•  Front fog light relay

•  Related wiring harnesses

Light switch at OFF position

1.0 or less

J-01 T

—

—

—

—

—

J-01 U

—

—

—

—

—

J-01 V

Brake switch signal output

PCM

Brake pedal depressed

B+

•  Brake switch

•  PCM

•  Related wiring harnesses

Brake pedal released

1.0 or less

J-01 W

—

—

—

—

—

J-01 X

—

—

—

—

—

J-01 Y

—

—

—

—

—

J-01 Z

—

—

—

—

—

J-01 AA

—

—

—

—

—

J-01 AB

—

—

—

—

—

J-01 AC

Parking light (LH) control

Parking light (LH)

Ignition switch off

Light switch at TNS position

B+

•  Parking light (LH)

•  Related wiring harnesses

Light switch at OFF position

1.0 or less

J-01 AD

—

—

—

—

—

J-01 AE

Back-up light switch signal

Back-up light switch

Ignition switch at ON

Transaxle in reverse

B+

•  Back-up light switch

•  Related wiring harnesses

Other

1.0 or less

J-01 AF

—

—

—

—

—

J-01 AG

Windshield washer motor control

Windshield washer motor

Ignition switch at ON

Windshield washer switch on

B+

•  Windshield washer motor

•  Related wiring harnesses

Windshield washer switch off

1.0 or less

J-01 AH

Rear window defroster relay control

Rear window defroster relay

Ignition switch at ON

Rear window defroster switch on

1.0 or less

•  Rear window defroster relay

•  Related wiring harnesses

Rear window defroster switch off

B+

J-01 AI

Autostop switch signal

Autostop switch

Ignition switch at ON

Windshield wiper moving

B+

•  Autostop switch (windshield wiper motor)

•  Related wiring harnesses

Windshield wiper stopped

1.0 or less

J-01 AJ

—

—

—

—

—

J-01 AK

Front turn light (LH) control

Front turn light (LH)

Turn switch (LH) on

Front turn light (LH) flashes

Alternates between 1.0 or less and B+

•  Front turn light (LH)

•  Related wiring harnesses

Hazard warning switch on

Other

1.0 or less

J-01 AL

Brake fluid level signal

Brake fluid level sensor

Ignition switch at ON

Brake fluid level above MIN.

B+

•  Brake fluid level sensor

•  Related wiring harnesses

Brake fluid level below MIN.

1.0 or less

J-01 AM

PJB power supply

Main fuse block

Under any condition

B+

•  Related wiring harnesses

J-01 AN

—

—

—

—

—

J-01 AO

Windshield wiper motor control

Windshield wiper motor (low speed)

Wiper switch at low position

B+

•  Windshield wiper motor

•  Related wiring harnesses

Other

1.0 or less

J-02 A

—

—

—

—

—

J-02 B

—

—

—

—

—

J-02 C

—

—

—

—

—

J-02 D

—

—

—

—

—

J-02 E

—

—

—

—

—

J-02 F

—

—

—

—

—

J-02 G

—

—

—

—

—

J-02 H

—

—

—

—

—

J-02 I

—

—

—

—

—

J-02 J

—

—

—

—

—

J-02 K

—

—

—

—

—

J-02 L

—

—

—

—

—

J-02 M

—

—

—

—

—

J-02 N

—

—

—

—

—

J-02 O

—

—

—

—

—

J-02 P

—

—

—

—

—

J-02 Q

—

—

—

—

—

J-02 R

—

—

—

—

—

J-02 S

—

—

—

—

—

J-02 T

—

—

—

—

—

J-02 U

—

—

—

—

—

J-02 V

—

—

—

—

—

J-02 W

—

—

—

—

—

J-02 X

—

—

—

—

—

J-02 Y

Bonnet latch switch signal

Bonnet latch switch

Bonnet open

(Bonnet latch switch off)

B+

•  Bonnet latch switch

•  Related wiring harnesses

Bonnet closed

(Bonnet latch switch on)

1.0 or less

J-02 Z

Headlight cleaner relay control

Headlight cleaner relay

Headlight cleaner operating

1.0 or less

•  Headlight cleaner relay

•  Related wiring harnesses

Other

B+

J-02 AA

—

—

—

—

—

J-02 AB

—

—

—

—

—

J-02 AC

—

—

—

—

—

J-02 AD

Ambient temperature sensor signal

Ambient temperature sensor

Depends on temperature surrounding sensor

(See Figure 1 (Ambient Temperature Sensor).)

•  Ambient temperature sensor

•  Related wiring harnesses

J-02 AE

Front fog light relay control

Front fog light relay

Front fog light switch on and light switch at TNS position

1.0 or less

•  Front fog light relay

•  Related wiring harnesses

Front fog light switch off

B+

J-02 AF

Sensor GND

Ambient temperature sensor

Under any condition: Inspect for continuity to ground.

Continuity detected

•  Related wiring harnesses

J-03 A

—

—

—

—

—

J-03 B

Washer switch signal

Windshield wiper and washer switch

Ignition switch at ON

Washer switch on

B+

•  Windshield wiper and washer switch

•  Related wiring harnesses

Washer switch off

1.0 or less

J-03 C

PJB GND

Body ground

Under any condition: Inspect for continuity to ground.

Continuity detected

•  Related wiring harnesses

J-03 D

—

—

—

—

—

J-03 E

—

—

—

—

—

J-03 F

—

—

—

—

—

J-03 G

—

—

—

—

—

J-03 H

Illumination power supply

Illumination bulb

Light switch at TNS position

B+

•  Related wiring harnesses

Light switch at OFF position

1.0 or less

J-03 I

TNS signal

Light switch

Light switch at TNS position

1.0 or less

•  Light switch

•  Related wiring harnesses

Light switch at OFF position

B+

J-03 J

DLC-2 power supply

DLC-2

Under any condition

B+

•  Related wiring harnesses

J-03 K

—

—

—

—

—

J-03 L

—

—

—

—

—

J-03 M

—

—

—

—

—

J-03 N

Washer motor power supply

•  Windshield wiper and washer switch

•  Rear washer motor

Ignition switch at ON

B+

•  Ignition switch

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-03 O

Seat warmer power supply

Seat warmer

Ignition switch at ON

B+

•  Ignition switch

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-03 P

Power supply

•  Audio unit

•  Keyless control module

•  Car-navigation unit

•  Ignition key illumination bulb

Under any condition

B+

•  Related wiring harnesses

J-03 Q

Auto leveling control

Auto leveling control module

Light switch at headlight position

1.0 or less

•  Auto leveling control module

•  Related wiring harnesses

Light switch at OFF position

B+

J-03 R

Climate control unit power supply

Climate control unit

Under any condition

B+

•  Related wiring harnesses

J-03 S

—

—

—

—

—

J-03 T

Power supply

•  Instrument cluster

•  Key interlock solenoid

Under any condition

B+

•  Related wiring harnesses

J-03 U

—

—

—

—

—

J-03 V

—

—

—

—

—

J-03 W

Rear fog light control

Rear fog light

Rear fog light switch on

B+

•  Rear fog light

•  Related wiring harnesses

Rear fog light switch off

1.0 or less

J-03 X

PJB GND

Body ground

Under any condition: Inspect for continuity to ground.

Continuity detected

•  Related wiring harnesses

J-03 Y

Power supply

Ignition switch

Ignition switch at ACC

B+

•  Ignition switch

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-03 Z

—

—

—

—

—

J-03 AA

Power supply

•  Audio unit

•  Keyless control module

•  Car-navigation unit

Ignition switch at ACC

B+

•  Ignition switch

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-03 AB

Ignition key illumination control

Ignition key illumination

Ignition switch off and driver-side door opened.

1.0 or less

•  Ignition key illumination bulb

•  Related wiring harnesses

15 s or more after driver-side door closed.

B+

J-03 AC

Power supply

Instrument cluster

Ignition switch at ON

B+

•  Ignition switch

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-03 AD

Power supply

Climate control unit

Ignition switch at ON

B+

•  Ignition switch

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-03 AE

—

—

—

—

—

J-03 AF

—

—

—

—

—

J-03 AG

—

—

—

—

—

J-03 AH

—

—

—

—

—

J-03 AI

Panel light control

Illumination bulb

Panel light control switch turned to the brightest setting

1.0 or less

•  Each illumination bulb

•  Related wiring harnesses

Panel light control switch turned to the darkest position

(See Inspection Using an Oscilloscope (Reference).)

J-03 AJ

Panel light control input

Panel light control switch

Panel light control switch turned to the brightest setting

Approx. 4.5

•  Panel light control switch

•  Related wiring harnesses

Panel light control switch turned to the darkest position

1.0 or less

J-03 AK

—

—

—

—

—

J-03 AL

Headlight leveling switch power supply

Headlight leveling switch

Light switch at headlight position

B+

•  Headlight leveling switch

•  Related wiring harnesses

Light switch at OFF position

1.0 or less

J-03 AM

SAS control module power supply

SAS control module

Ignition switch at ON

B+

•  Ignition switch

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-03 AN

Cigarette lighter power supply

Cigarette lighter

Ignition switch at ACC

B+

•  Ignition switch

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-03 AO

Power supply

Ignition switch

Ignition switch at ON

B+

•  Ignition switch

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-03 AP

Power supply

Ignition switch

Ignition switch at ON

B+

•  Ignition switch

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-03 AQ

—

—

—

—

—

J-03 AR

—

—

—

—

—

J-03 AS

Headlight switch signal

Light switch

Light switch at headlight position

1.0 or less

•  Light switch

•  Related wiring harnesses

Light switch at OFF position

B+

J-03 AT

—

—

—

—

—

J-04 A

—

—

—

—

—

J-04 A^*

PTC heater control

PTC heater

PTC heater operating

(See Inspection Using an Oscilloscope (Reference).)

•  PTC heater

•  Related wiring harnesses

J-04 B

CAN_L

—

Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.

—

•  Related wiring harnesses

J-04 C

Windshield wiper switch signal (high)

Windshield wiper and washer switch

Ignition switch at ON

Windshield wiper switch at high position

1.0 or less

•  Windshield wiper and washer switch

•  Related wiring harnesses

Other

B+

J-04 D

CAN_H

—

Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.

—

•  Related wiring harnesses

J-04 E

Sensitivity adjustment volume

Windshield wiper and washer switch

Ignition switch at ON

Sensitivity adjustment volume turned from + position to – position

0 → 0.8 → 1.5 → 2.5 → 2.7

•  Windshield wiper and washer switch

•  Related wiring harnesses

J-04 F

Keyless entry signal

Keyless control module

Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.

—

•  Keyless control module

•  Related wiring harnesses

J-04 G

Windshield wiper switch signal (low)

Windshield wiper and washer switch

Ignition switch at ON

Windshield wiper switch at low position

1.0 or less

•  Windshield wiper and washer switch

•  Related wiring harnesses

Other

B+

J-04 H

—

—

—

—

—

J-04 I

Rear window defroster signal

Climate control unit

Rear window defroster switch on

1.0 or less

•  Climate control unit

•  Related wiring harnesses

Rear window defroster switch off

B+

J-04 J

—

—

—

—

—

J-04 K

Turn switch input (RH)

Turn switch

Ignition switch at ON

Turn switch at right position

1.0 or less

•  Turn switch

•  Related wiring harnesses

Other

B+

J-04 L

Headlight switch signal (high beam)

Light switch

Light switch at high position or flash-to-pass

1.0 or less

•  Light switch

•  Related wiring harnesses

Other

B+

J-04 M

—

—

—

—

—

J-04 N

—

—

—

—

—

J-04 O

Turn switch input (LH)

Turn switch

Ignition switch at ON

Turn switch at left position

1.0 or less

•  Turn switch

•  Related wiring harnesses

Other

B+

J-04 P

—

—

—

—

—

J-04 Q

—

—

—

—

—

J-04 R

Rear wiper switch signal (on)

Rear wiper and washer switch

Ignition switch at ON

Rear wiper and washer switch at ON position

1.0 or less

•  Rear wiper and washer switch

•  Related wiring harnesses

Other

B+

J-04 S

Rear wiper switch signal (INT)

Rear wiper and washer switch

Ignition switch at ON

Rear wiper and washer switch at INT position

1.0 or less

•  Rear wiper and washer switch

•  Related wiring harnesses

Other

B+

J-04 T

—

—

—

—

—

J-04 U

Windshield wiper switch signal (INT)

Windshield wiper switch

Ignition switch at ON

Windshield wiper switch at INT position

1.0 or less

•  Windshield wiper switch

•  Related wiring harnesses

Other

B+

J-04 V

—

—

—

—

—

J-04 W

Front fog light switch signal

Front fog light switch

Front fog light switch on

1.0 or less

•  Fog light switch

•  Related wiring harnesses

Front fog light switch off

B+

J-04 X^*

PTC heater request signal

Climate control unit

Fan switch at 1st, temperature control dial to MAX HOT

1.0 or less

•  Climate control unit

•  Related wiring harnesses

Other

B+

J-04 Y

—

—

—

—

—

J-04 Z

Rear fog light switch signal

Rear fog light switch

Rear fog light switch on

1.0 or less

•  Rear fog light switch

•  Related wiring harnesses

Rear fog light switch off

B+

J-04 AA

—

—

—

—

—

J-04 AB

Parking brake switch signal

Parking brake switch

Ignition switch at ON

Parking brake switch on

1.0 or less

•  Parking brake switch

•  Related wiring harnesses

Parking brake switch off

B+

J-04 AC

Hazard warning switch signal

Hazard warning switch

Hazard warning switch on

1.0 or less

•  Hazard warning switch

•  Related wiring harnesses

Hazard warning switch off

B+

J-04 AD

Rear window defroster signal

Climate control unit

Rear window defroster switch is pressed

1.0 or less

•  Climate control unit

•  Related wiring harnesses

Rear window defroster switch is released

B+

J-04 AE

Light switch signal (AUTO)

Light switch

Ignition switch at ON

Light switch at AUTO position

1.0 or less

•  Light switch

•  Related wiring harnesses

Other

B+

J-04 AF

A/C operation signal

Climate control unit

A/C operating

1.0 or less

•  Climate control unit

•  Related wiring harnesses

A/C not operating

B+

J-05 A

Rear turn light (LH) control

Rear turn light (LH)

Turn switch (LH) on

Rear turn light (LH) flashes

Alternates between 1.0 or less and B+

•  Rear turn light (LH)

•  Related wiring harnesses

Hazard warning switch on

Other

1.0 or less

J-05 B

—

—

—

—

—

J-05 C

Back-up light control

Back-up light

Ignition switch at ON

Transaxle in reverse

B+

•  Back-up light

•  Related wiring harnesses

Other

1.0 or less

J-05 D

—

—

—

—

—

J-05 E

Power outer mirror power supply

Power outer mirror

Ignition switch at ACC

B+

•  Power outer mirror

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-05 F

Sunroof power supply

Sunroof

Under any condition

B+

•  Sunroof

•  Related wiring harnesses

J-05 G

Tail light (LH) control

Tail light (LH)

Light switch at TNS position

B+

•  Tail light (LH)

•  Related wiring harnesses

Light switch at OFF position

1.0 or less

J-05 H

Rain sensor GND

Rain sensor

Under any condition: Inspect for continuity to ground.

Continuity detected

•  Related wiring harnesses

J-05 I

Auto stop switch signal

Rain sensor

Windshield wiper moving

B+

•  Auto stop switch (windshield wiper motor)

•  Rain sensor

•  Related wiring harnesses

Windshield wiper stopped

1.0 or less

J-05 J

Trunk lid unlock control

Trunk lid unlock actuator

Trunk lid unlock actuator unlocking

1.0 or less → B+→ 1.0 or less

•  Trunk lid unlock actuator

•  Related wiring harnesses

Other

1.0 or less

J-05 K

Power window power supply

Power window main switch

Under any condition

B+

•  Related wiring harnesses

J-05 L

—

—

—

—

—

J-05 M

Brake switch signal

Brake switch

Brake pedal depressed

B+

•  Brake switch

•  Related wiring harnesses

Brake pedal released

1.0 or less

J-05 N

Double lock control

Door lock actuator

Lock actuator double-locking (Transmitter LOCK button pressed twice within 5 s)

1.0 or less → B+→ 1.0 or less

•  Door lock actuator

•  Related wiring harnesses

Other

1.0 or less

J-05 O

Power window power supply

Power window main switch

Under any condition

B+

•  Related wiring harnesses

J-05 P

—

—

—

—

—

J-05 Q

—

—

—

—

—

J-05 R

Intruder sensor signal

Intruder sensor

Theft-deterrent system arming

(See Inspection Using an Oscilloscope (Reference).)

•  Intruder sensor

•  Related wiring harnesses

J-05 S

Interior light power supply

•  Map light

•  Interior light

•  Trunk compartment light

•  Cargo compartment light

Under any condition

B+

•  Related wiring harnesses

J-05 T

Rain sensor power supply

Rain sensor

Ignition switch at ON

B+

•  Ignition switch

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-05 U

Interior light control

•  Map light

•  Interior light

Within 5 min after any door is opened.

1.0 or less

•  Map light

•  Interior light

•  Related wiring harnesses

5 min or more after any door is opened.

B+

All doors closed

1.0 or less

J-05 V

—

—

—

—

—

J-05 W

—

—

—

—

—

J-05 X

—

—

—

—

—

J-05 Y

Door unlock control

Door lock actuator

Door lock actuator unlocking

1.0 or less → B+→ 1.0 or less

•  Door lock actuator

•  Related wiring harnesses

Other

1.0 or less

J-05 Z

Heated outer mirror control

Heated outer mirror

Rear window defroster switch on

B+

•  Heated outer mirror

•  Related wiring harnesses

Rear window defroster switch off

1.0 or less

J-05 AA

—

—

—

—

—

J-05 AB

—

—

—

—

—

J-05 AC

—

—

—

—

—

J-05 AD

—

—

—

—

—

J-05 AE

—

—

—

—

—

J-05 AF

—

—

—

—

—

J-05 AG

—

—

—

—

—

J-05 AH

—

—

—

—

—

J-05 AI

—

—

—

—

—

J-05 AJ

—

—

—

—

—

J-05 AK

Rear turn light (RH) control

Rear turn light (RH)

Turn switch (RH) on

Rear turn light (RH) flashes

Alternates between 1.0 or less and B+

•  Rear turn light (RH)

•  Related wiring harnesses

Hazard warning switch on

Other

1.0 or less

J-05 AL

Sunroof power supply

Sunroof

Ignition switch at ON

B+

•  Ignition switch

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-05 AM

—

—

—

—

—

J-05 AN

—

—

—

—

—

J-05 AO

—

—

—

—

—

J-05 AP

Door lock control

Door lock actuator

Door lock actuator locking

1.0 or less → B+→ 1.0 or less

•  Door lock actuator

•  Related wiring harnesses

Other

1.0 or less

J-05 AQ

Power supply

Theft-deterrent siren

Under any condition

B+

•  Related wiring harnesses

J-05 AR

Rear wiper control

Rear wiper motor

Rear wiper moving

B+

•  Rear wiper motor

•  Related wiring harnesses

Rear wiper stopped

1.0 or less

J-05 AS

Tail light (RH) control

Tail light (RH)

Light switch at TNS position

B+

•  Tail light (RH)

•  Related wiring harnesses

Light switch at OFF position

1.0 or less

J-05 AT

Rear wiper power supply

Rear wiper motor

Ignition switch at ON

B+

•  Rear wiper motor

•  Related wiring harnesses

Ignition switch off

1.0 or less

J-06 A

—

—

—

—

—

J-06 B

—

—

—

—

—

J-06 C

—

—

—

—

—

J-06 D

—

—

—

—

—

J-06 E

—

—

—

—

—

J-06 F

—

—

—

—

—

J-06 G

—

—

—

—

—

J-06 H

—

—

—

—

—

J-06 I

—

—

—

—

—

J-06 J

—

—

—

—

—

J-06 K

—

—

—

—

—

J-06 L

—

—

—

—

—

J-06 M

Intruder sensor power supply

Intruder sensor

Theft-deterrent system pre-arming or arming

B+

•  Related wiring harnesses

Other

1.0 or less

J-06 N

Intruder sensor GND

Intruder sensor

Under any condition: Inspect for continuity to ground.

Continuity detected

•  Related wiring harnesses

J-06 O

Door status

Power window main switch

All doors closed

B+

•  Door switch

•  Power window main switch

•  Related wiring harnesses

Any door opened

1.0 or less

J-06 P

Trunk lid lock/unlock signal

Trunk lid key cylinder switch

At the moment key cylinder is unlocked

1.0 or less

•  Trunk lid key cylinder switch

•  Related wiring harnesses

At the moment key cylinder is locked

Approx. 3

Key cylinder at neutral position

B+

J-06 Q

Rear door latch switch (RH) signal

Rear door latch switch (RH)

Rear door (RH) open

(Rear door latch switch (RH) off)

B+

•  Rear door latch switch (RH)

•  Related wiring harnesses

Rear door (RH) closed

(Rear door latch switch (RH) on)

1.0 or less

J-06 R

Intruder sensor signal

Intruder sensor

Theft-deterrent system pre-arming, arming, or alarm

B+

•  Intruder sensor

•  Related wiring harnesses

Intruder sensor detects intrusion

B+→ 1.0 or less → B+

Theft-deterrent system: Other

1.0 or less

J-06 S

Rear door latch switch (LH) signal

Rear door latch switch (LH)

Rear door (LH) open

(Rear door latch switch (LH) off)

B+

•  Rear door latch switch (LH)

•  Related wiring harnesses

Rear door (LH) closed

(Rear door latch switch (LH) on)

1.0 or less

J-06 T

—

—

—

—

—

J-06 U

Front door latch switch (RH) signal

Front door latch switch (RH)

Front door (RH) open

(Front door latch switch (RH) off)

B+

•  Front door latch switch (RH)

•  Related wiring harnesses

Front door (RH) closed

(Front door latch switch (RH) on)

1.0 or less

J-06 V

Unlock input (Driver-side door lock-link switch)

Driver-side door lock-link switch

Driver-side door locked

B+

•  Driver-side door lock-link switch

•  Related wiring harnesses

Driver-side door unlocked

1.0 or less

J-06 W

Front door latch switch (LH) signal

Front door latch switch (LH)

Front door (LH) open

(Front door latch switch (LH) off)

B+

•  Front door latch switch (LH)

•  Related wiring harnesses

Front door (LH) closed

(Front door latch switch (LH) on)

1.0 or less

J-06 X

Liftgate latch switch signal

Liftgate latch switch

Liftgate is open.

(Liftgate latch switch on)

1.0 or less

•  Liftgate latch switch

•  Related wiring harnesses

Liftgate is closed.

(Liftgate latch switch off)

B+

J-06 Y

Lock input (Driver-side door key cylinder switch)

Driver-side door key cylinder switch

At the moment key cylinder is locked

1.0 or less

•  Driver-side door key cylinder switch

•  Related wiring harnesses

Other

B+

J-06 Z

Trunk lid latch switch signal

Trunk lid latch switch

Trunk lid open

(Trunk lid latch switch on)

1.0 or less

•  Trunk lid latch switch

•  Related wiring harnesses

Trunk lid closed

(Trunk lid latch switch off)

B+

J-06 AA

Unlock input (Driver-side door key cylinder switch)

Driver-side door key cylinder switch

At the moment key cylinder is unlocked

1.0 or less

•  Driver-side door key cylinder switch

•  Related wiring harnesses

Other

B+

J-06 AB

Trunk lid open request signal

Trunk lid key cylinder push switch

Trunk lid key cylinder push switch pressed

1.0 or less

•  Trunk lid key cylinder push switch

•  Related wiring harnesses

Trunk lid key cylinder push switch released

B+

J-06 AC

Lock input (Driver-side door lock-link switch)

Driver-side door lock-link switch

Driver-side door locked

1.0 or less

•  Driver-side door lock-link switch

•  Related wiring harnesses

Driver-side door unlocked

B+

J-06 AD

Wiper or headlight operation request

Rain sensor

Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.

—

•  Rain sensor

•  Related wiring harnesses

J-06 AE

—

—

—

—

—

J-06 AF

—

—

—

—

—

Terminal	Signal	Connected to	Measurement condition	Voltage (V)/Continuity	Inspection item (s)
J-01 A	—	—	—	—	—
J-01 B	Power supply	Main fuse block	Ignition switch at ON	B+	• Ignition switch • Related wiring harnesses
Ignition switch off	1.0 or less
J-01 C	Headlight (RH) control	Headlight (RH) (low beam)	Light switch at headlight position	B+	• Headlight (RH) (low beam) • Related wiring harnesses
Light switch off	1.0 or less
J-01 D	Headlight (LH) control	Headlight (LH) (low beam)	Light switch at headlight position	B+	• Headlight (LH) (low beam) • Related wiring harnesses
Light switch off	1.0 or less
J-01 E	Windshield wiper motor control	Windshield wiper motor (high speed)	Wiper switch at high position	B+	• Windshield wiper motor • Related wiring harnesses
Other	1.0 or less
J-01 F	PJB power supply	Main fuse block	Under any condition	B+	• Related wiring harnesses
J-01 G	Blower relay, rear window defroster relay power supply	Blower relay, rear window defroster relay	Ignition switch at ON	B+	• Blower relay • Rear window defroster relay • Related wiring harnesses
Ignition switch off	1.0 or less
J-01 H	Back-up light power supply	Back-up light switch	Ignition switch at ON	B+	• Back-up light switch • Related wiring harnesses
Ignition switch off	1.0 or less
J-01 I	Headlight cleaner relay power supply	Headlight cleaner relay	Ignition switch at ON	B+	• Headlight cleaner relay • Related wiring harnesses
Ignition switch off	1.0 or less
J-01 J	—	—	—	—	—
J-01 K	Parking light (RH) control	Parking light (RH)	Ignition switch off	Light switch at TNS position	B+	• Parking light (RH) • Related wiring harnesses
Light switch at OFF position	1.0 or less
J-01 L	Front turn light (RH) control	Front turn light (RH)	Turn switch (RH) on	Front turn light (RH) flashes	Alternates between 1.0 or less and B+	• Front turn light (RH) • Related wiring harnesses
Hazard warning switch on
Other	1.0 or less
J-01 M	High beam (RH) control	Headlight (RH) (high beam)	Ignition switch off	Light switch at high position or flash-to-pass	B+	• Headlight (RH) (high beam) • Related wiring harnesses
Other	1.0 or less
J-01 N	Heated outer mirror power supply	Rear window defroster relay	Rear window defroster switch on	B+	• Rear window defroster relay • Related wiring harnesses
Rear window defroster switch off	1.0 or less
J-01 O	High beam (LH) control	Headlight (LH) (high beam)	Ignition switch off	Light switch at high position or flash-to-pass	B+	• Headlight (LH) (high beam) • Related wiring harnesses
Other	1.0 or less
J-01 P	—	—	—	—	—
J-01 Q	Power supply	Main fuse block	Ignition switch at ON	B+	• Ignition switch • Related wiring harnesses
Ignition switch off	1.0 or less
J-01 R	PJB power supply	Main fuse block	Under any condition	B+	• Related wiring harnesses
J-01 S	Front fog light relay power supply	Front fog light relay	Ignition switch off	Light switch at TNS position	B+	• Front fog light relay • Related wiring harnesses
Light switch at OFF position	1.0 or less
J-01 T	—	—	—	—	—
J-01 U	—	—	—	—	—
J-01 V	Brake switch signal output	PCM	Brake pedal depressed	B+	• Brake switch • PCM • Related wiring harnesses
Brake pedal released	1.0 or less
J-01 W	—	—	—	—	—
J-01 X	—	—	—	—	—
J-01 Y	—	—	—	—	—
J-01 Z	—	—	—	—	—
J-01 AA	—	—	—	—	—
J-01 AB	—	—	—	—	—
J-01 AC	Parking light (LH) control	Parking light (LH)	Ignition switch off	Light switch at TNS position	B+	• Parking light (LH) • Related wiring harnesses
Light switch at OFF position	1.0 or less
J-01 AD	—	—	—	—	—
J-01 AE	Back-up light switch signal	Back-up light switch	Ignition switch at ON	Transaxle in reverse	B+	• Back-up light switch • Related wiring harnesses
Other	1.0 or less
J-01 AF	—	—	—	—	—
J-01 AG	Windshield washer motor control	Windshield washer motor	Ignition switch at ON	Windshield washer switch on	B+	• Windshield washer motor • Related wiring harnesses
Windshield washer switch off	1.0 or less
J-01 AH	Rear window defroster relay control	Rear window defroster relay	Ignition switch at ON	Rear window defroster switch on	1.0 or less	• Rear window defroster relay • Related wiring harnesses
Rear window defroster switch off	B+
J-01 AI	Autostop switch signal	Autostop switch	Ignition switch at ON	Windshield wiper moving	B+	• Autostop switch (windshield wiper motor) • Related wiring harnesses
Windshield wiper stopped	1.0 or less
J-01 AJ	—	—	—	—	—
J-01 AK	Front turn light (LH) control	Front turn light (LH)	Turn switch (LH) on	Front turn light (LH) flashes	Alternates between 1.0 or less and B+	• Front turn light (LH) • Related wiring harnesses
Hazard warning switch on
Other	1.0 or less
J-01 AL	Brake fluid level signal	Brake fluid level sensor	Ignition switch at ON	Brake fluid level above MIN.	B+	• Brake fluid level sensor • Related wiring harnesses
Brake fluid level below MIN.	1.0 or less
J-01 AM	PJB power supply	Main fuse block	Under any condition	B+	• Related wiring harnesses
J-01 AN	—	—	—	—	—
J-01 AO	Windshield wiper motor control	Windshield wiper motor (low speed)	Wiper switch at low position	B+	• Windshield wiper motor • Related wiring harnesses
Other	1.0 or less
J-02 A	—	—	—	—	—
J-02 B	—	—	—	—	—
J-02 C	—	—	—	—	—
J-02 D	—	—	—	—	—
J-02 E	—	—	—	—	—
J-02 F	—	—	—	—	—
J-02 G	—	—	—	—	—
J-02 H	—	—	—	—	—
J-02 I	—	—	—	—	—
J-02 J	—	—	—	—	—
J-02 K	—	—	—	—	—
J-02 L	—	—	—	—	—
J-02 M	—	—	—	—	—
J-02 N	—	—	—	—	—
J-02 O	—	—	—	—	—
J-02 P	—	—	—	—	—
J-02 Q	—	—	—	—	—
J-02 R	—	—	—	—	—
J-02 S	—	—	—	—	—
J-02 T	—	—	—	—	—
J-02 U	—	—	—	—	—
J-02 V	—	—	—	—	—
J-02 W	—	—	—	—	—
J-02 X	—	—	—	—	—
J-02 Y	Bonnet latch switch signal	Bonnet latch switch	Bonnet open (Bonnet latch switch off)	B+	• Bonnet latch switch • Related wiring harnesses
Bonnet closed (Bonnet latch switch on)	1.0 or less
J-02 Z	Headlight cleaner relay control	Headlight cleaner relay	Headlight cleaner operating	1.0 or less	• Headlight cleaner relay • Related wiring harnesses
Other	B+
J-02 AA	—	—	—	—	—
J-02 AB	—	—	—	—	—
J-02 AC	—	—	—	—	—
J-02 AD	Ambient temperature sensor signal	Ambient temperature sensor	Depends on temperature surrounding sensor	(See Figure 1 (Ambient Temperature Sensor).)	• Ambient temperature sensor • Related wiring harnesses
J-02 AE	Front fog light relay control	Front fog light relay	Front fog light switch on and light switch at TNS position	1.0 or less	• Front fog light relay • Related wiring harnesses
Front fog light switch off	B+
J-02 AF	Sensor GND	Ambient temperature sensor	Under any condition: Inspect for continuity to ground.	Continuity detected	• Related wiring harnesses
J-03 A	—	—	—	—	—
J-03 B	Washer switch signal	Windshield wiper and washer switch	Ignition switch at ON	Washer switch on	B+	• Windshield wiper and washer switch • Related wiring harnesses
Washer switch off	1.0 or less
J-03 C	PJB GND	Body ground	Under any condition: Inspect for continuity to ground.	Continuity detected	• Related wiring harnesses
J-03 D	—	—	—	—	—
J-03 E	—	—	—	—	—
J-03 F	—	—	—	—	—
J-03 G	—	—	—	—	—
J-03 H	Illumination power supply	Illumination bulb	Light switch at TNS position	B+	• Related wiring harnesses
Light switch at OFF position	1.0 or less
J-03 I	TNS signal	Light switch	Light switch at TNS position	1.0 or less	• Light switch • Related wiring harnesses
Light switch at OFF position	B+
J-03 J	DLC-2 power supply	DLC-2	Under any condition	B+	• Related wiring harnesses
J-03 K	—	—	—	—	—
J-03 L	—	—	—	—	—
J-03 M	—	—	—	—	—
J-03 N	Washer motor power supply	• Windshield wiper and washer switch • Rear washer motor	Ignition switch at ON	B+	• Ignition switch • Related wiring harnesses
Ignition switch off	1.0 or less
J-03 O	Seat warmer power supply	Seat warmer	Ignition switch at ON	B+	• Ignition switch • Related wiring harnesses
Ignition switch off	1.0 or less
J-03 P	Power supply	• Audio unit • Keyless control module • Car-navigation unit • Ignition key illumination bulb	Under any condition	B+	• Related wiring harnesses
J-03 Q	Auto leveling control	Auto leveling control module	Light switch at headlight position	1.0 or less	• Auto leveling control module • Related wiring harnesses
Light switch at OFF position	B+
J-03 R	Climate control unit power supply	Climate control unit	Under any condition	B+	• Related wiring harnesses
J-03 S	—	—	—	—	—
J-03 T	Power supply	• Instrument cluster • Key interlock solenoid	Under any condition	B+	• Related wiring harnesses
J-03 U	—	—	—	—	—
J-03 V	—	—	—	—	—
J-03 W	Rear fog light control	Rear fog light	Rear fog light switch on	B+	• Rear fog light • Related wiring harnesses
Rear fog light switch off	1.0 or less
J-03 X	PJB GND	Body ground	Under any condition: Inspect for continuity to ground.	Continuity detected	• Related wiring harnesses
J-03 Y	Power supply	Ignition switch	Ignition switch at ACC	B+	• Ignition switch • Related wiring harnesses
Ignition switch off	1.0 or less
J-03 Z	—	—	—	—	—
J-03 AA	Power supply	• Audio unit • Keyless control module • Car-navigation unit	Ignition switch at ACC	B+	• Ignition switch • Related wiring harnesses
Ignition switch off	1.0 or less
J-03 AB	Ignition key illumination control	Ignition key illumination	Ignition switch off and driver-side door opened.	1.0 or less	• Ignition key illumination bulb • Related wiring harnesses
15 s or more after driver-side door closed.	B+
J-03 AC	Power supply	Instrument cluster	Ignition switch at ON	B+	• Ignition switch • Related wiring harnesses
Ignition switch off	1.0 or less
J-03 AD	Power supply	Climate control unit	Ignition switch at ON	B+	• Ignition switch • Related wiring harnesses
Ignition switch off	1.0 or less
J-03 AE	—	—	—	—	—
J-03 AF	—	—	—	—	—
J-03 AG	—	—	—	—	—
J-03 AH	—	—	—	—	—
J-03 AI	Panel light control	Illumination bulb	Panel light control switch turned to the brightest setting	1.0 or less	• Each illumination bulb • Related wiring harnesses
Panel light control switch turned to the darkest position	(See Inspection Using an Oscilloscope (Reference).)
J-03 AJ	Panel light control input	Panel light control switch	Panel light control switch turned to the brightest setting	Approx. 4.5	• Panel light control switch • Related wiring harnesses
Panel light control switch turned to the darkest position	1.0 or less
J-03 AK	—	—	—	—	—
J-03 AL	Headlight leveling switch power supply	Headlight leveling switch	Light switch at headlight position	B+	• Headlight leveling switch • Related wiring harnesses
Light switch at OFF position	1.0 or less
J-03 AM	SAS control module power supply	SAS control module	Ignition switch at ON	B+	• Ignition switch • Related wiring harnesses
Ignition switch off	1.0 or less
J-03 AN	Cigarette lighter power supply	Cigarette lighter	Ignition switch at ACC	B+	• Ignition switch • Related wiring harnesses
Ignition switch off	1.0 or less
J-03 AO	Power supply	Ignition switch	Ignition switch at ON	B+	• Ignition switch • Related wiring harnesses
Ignition switch off	1.0 or less
J-03 AP	Power supply	Ignition switch	Ignition switch at ON	B+	• Ignition switch • Related wiring harnesses
Ignition switch off	1.0 or less
J-03 AQ	—	—	—	—	—
J-03 AR	—	—	—	—	—
J-03 AS	Headlight switch signal	Light switch	Light switch at headlight position	1.0 or less	• Light switch • Related wiring harnesses
Light switch at OFF position	B+
J-03 AT	—	—	—	—	—
J-04 A	—	—	—	—	—
J-04 A^*	PTC heater control	PTC heater	PTC heater operating	(See Inspection Using an Oscilloscope (Reference).)	• PTC heater • Related wiring harnesses
J-04 B	CAN_L	—	Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.	—	• Related wiring harnesses
J-04 C	Windshield wiper switch signal (high)	Windshield wiper and washer switch	Ignition switch at ON	Windshield wiper switch at high position	1.0 or less	• Windshield wiper and washer switch • Related wiring harnesses
Other	B+
J-04 D	CAN_H	—	Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.	—	• Related wiring harnesses
J-04 E	Sensitivity adjustment volume	Windshield wiper and washer switch	Ignition switch at ON	Sensitivity adjustment volume turned from + position to – position	0 → 0.8 → 1.5 → 2.5 → 2.7	• Windshield wiper and washer switch • Related wiring harnesses
J-04 F	Keyless entry signal	Keyless control module	Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.	—	• Keyless control module • Related wiring harnesses
J-04 G	Windshield wiper switch signal (low)	Windshield wiper and washer switch	Ignition switch at ON	Windshield wiper switch at low position	1.0 or less	• Windshield wiper and washer switch • Related wiring harnesses
Other	B+
J-04 H	—	—	—	—	—
J-04 I	Rear window defroster signal	Climate control unit	Rear window defroster switch on	1.0 or less	• Climate control unit • Related wiring harnesses
Rear window defroster switch off	B+
J-04 J	—	—	—	—	—
J-04 K	Turn switch input (RH)	Turn switch	Ignition switch at ON	Turn switch at right position	1.0 or less	• Turn switch • Related wiring harnesses
Other	B+
J-04 L	Headlight switch signal (high beam)	Light switch	Light switch at high position or flash-to-pass	1.0 or less	• Light switch • Related wiring harnesses
Other	B+
J-04 M	—	—	—	—	—
J-04 N	—	—	—	—	—
J-04 O	Turn switch input (LH)	Turn switch	Ignition switch at ON	Turn switch at left position	1.0 or less	• Turn switch • Related wiring harnesses
Other	B+
J-04 P	—	—	—	—	—
J-04 Q	—	—	—	—	—
J-04 R	Rear wiper switch signal (on)	Rear wiper and washer switch	Ignition switch at ON	Rear wiper and washer switch at ON position	1.0 or less	• Rear wiper and washer switch • Related wiring harnesses
Other	B+
J-04 S	Rear wiper switch signal (INT)	Rear wiper and washer switch	Ignition switch at ON	Rear wiper and washer switch at INT position	1.0 or less	• Rear wiper and washer switch • Related wiring harnesses
Other	B+
J-04 T	—	—	—	—	—
J-04 U	Windshield wiper switch signal (INT)	Windshield wiper switch	Ignition switch at ON	Windshield wiper switch at INT position	1.0 or less	• Windshield wiper switch • Related wiring harnesses
Other	B+
J-04 V	—	—	—	—	—
J-04 W	Front fog light switch signal	Front fog light switch	Front fog light switch on	1.0 or less	• Fog light switch • Related wiring harnesses
Front fog light switch off	B+
J-04 X^*	PTC heater request signal	Climate control unit	Fan switch at 1st, temperature control dial to MAX HOT	1.0 or less	• Climate control unit • Related wiring harnesses
Other	B+
J-04 Y	—	—	—	—	—
J-04 Z	Rear fog light switch signal	Rear fog light switch	Rear fog light switch on	1.0 or less	• Rear fog light switch • Related wiring harnesses
Rear fog light switch off	B+
J-04 AA	—	—	—	—	—
J-04 AB	Parking brake switch signal	Parking brake switch	Ignition switch at ON	Parking brake switch on	1.0 or less	• Parking brake switch • Related wiring harnesses
Parking brake switch off	B+
J-04 AC	Hazard warning switch signal	Hazard warning switch	Hazard warning switch on	1.0 or less	• Hazard warning switch • Related wiring harnesses
Hazard warning switch off	B+
J-04 AD	Rear window defroster signal	Climate control unit	Rear window defroster switch is pressed	1.0 or less	• Climate control unit • Related wiring harnesses
Rear window defroster switch is released	B+
J-04 AE	Light switch signal (AUTO)	Light switch	Ignition switch at ON	Light switch at AUTO position	1.0 or less	• Light switch • Related wiring harnesses
Other	B+
J-04 AF	A/C operation signal	Climate control unit	A/C operating	1.0 or less	• Climate control unit • Related wiring harnesses
A/C not operating	B+
J-05 A	Rear turn light (LH) control	Rear turn light (LH)	Turn switch (LH) on	Rear turn light (LH) flashes	Alternates between 1.0 or less and B+	• Rear turn light (LH) • Related wiring harnesses
Hazard warning switch on
Other	1.0 or less
J-05 B	—	—	—	—	—
J-05 C	Back-up light control	Back-up light	Ignition switch at ON	Transaxle in reverse	B+	• Back-up light • Related wiring harnesses
Other	1.0 or less
J-05 D	—	—	—	—	—
J-05 E	Power outer mirror power supply	Power outer mirror	Ignition switch at ACC	B+	• Power outer mirror • Related wiring harnesses
Ignition switch off	1.0 or less
J-05 F	Sunroof power supply	Sunroof	Under any condition	B+	• Sunroof • Related wiring harnesses
J-05 G	Tail light (LH) control	Tail light (LH)	Light switch at TNS position	B+	• Tail light (LH) • Related wiring harnesses
Light switch at OFF position	1.0 or less
J-05 H	Rain sensor GND	Rain sensor	Under any condition: Inspect for continuity to ground.	Continuity detected	• Related wiring harnesses
J-05 I	Auto stop switch signal	Rain sensor	Windshield wiper moving	B+	• Auto stop switch (windshield wiper motor) • Rain sensor • Related wiring harnesses
Windshield wiper stopped	1.0 or less
J-05 J	Trunk lid unlock control	Trunk lid unlock actuator	Trunk lid unlock actuator unlocking	1.0 or less → B+→ 1.0 or less	• Trunk lid unlock actuator • Related wiring harnesses
Other	1.0 or less
J-05 K	Power window power supply	Power window main switch	Under any condition	B+	• Related wiring harnesses
J-05 L	—	—	—	—	—
J-05 M	Brake switch signal	Brake switch	Brake pedal depressed	B+	• Brake switch • Related wiring harnesses
Brake pedal released	1.0 or less
J-05 N	Double lock control	Door lock actuator	Lock actuator double-locking (Transmitter LOCK button pressed twice within 5 s)	1.0 or less → B+→ 1.0 or less	• Door lock actuator • Related wiring harnesses
Other	1.0 or less
J-05 O	Power window power supply	Power window main switch	Under any condition	B+	• Related wiring harnesses
J-05 P	—	—	—	—	—
J-05 Q	—	—	—	—	—
J-05 R	Intruder sensor signal	Intruder sensor	Theft-deterrent system arming	(See Inspection Using an Oscilloscope (Reference).)	• Intruder sensor • Related wiring harnesses
J-05 S	Interior light power supply	• Map light • Interior light • Trunk compartment light • Cargo compartment light	Under any condition	B+	• Related wiring harnesses
J-05 T	Rain sensor power supply	Rain sensor	Ignition switch at ON	B+	• Ignition switch • Related wiring harnesses
Ignition switch off	1.0 or less
J-05 U	Interior light control	• Map light • Interior light	Within 5 min after any door is opened.	1.0 or less	• Map light • Interior light • Related wiring harnesses
5 min or more after any door is opened.	B+
All doors closed	1.0 or less
J-05 V	—	—	—	—	—
J-05 W	—	—	—	—	—
J-05 X	—	—	—	—	—
J-05 Y	Door unlock control	Door lock actuator	Door lock actuator unlocking	1.0 or less → B+→ 1.0 or less	• Door lock actuator • Related wiring harnesses
Other	1.0 or less
J-05 Z	Heated outer mirror control	Heated outer mirror	Rear window defroster switch on	B+	• Heated outer mirror • Related wiring harnesses
Rear window defroster switch off	1.0 or less
J-05 AA	—	—	—	—	—
J-05 AB	—	—	—	—	—
J-05 AC	—	—	—	—	—
J-05 AD	—	—	—	—	—
J-05 AE	—	—	—	—	—
J-05 AF	—	—	—	—	—
J-05 AG	—	—	—	—	—
J-05 AH	—	—	—	—	—
J-05 AI	—	—	—	—	—
J-05 AJ	—	—	—	—	—
J-05 AK	Rear turn light (RH) control	Rear turn light (RH)	Turn switch (RH) on	Rear turn light (RH) flashes	Alternates between 1.0 or less and B+	• Rear turn light (RH) • Related wiring harnesses
Hazard warning switch on
Other	1.0 or less
J-05 AL	Sunroof power supply	Sunroof	Ignition switch at ON	B+	• Ignition switch • Related wiring harnesses
Ignition switch off	1.0 or less
J-05 AM	—	—	—	—	—
J-05 AN	—	—	—	—	—
J-05 AO	—	—	—	—	—
J-05 AP	Door lock control	Door lock actuator	Door lock actuator locking	1.0 or less → B+→ 1.0 or less	• Door lock actuator • Related wiring harnesses
Other	1.0 or less
J-05 AQ	Power supply	Theft-deterrent siren	Under any condition	B+	• Related wiring harnesses
J-05 AR	Rear wiper control	Rear wiper motor	Rear wiper moving	B+	• Rear wiper motor • Related wiring harnesses
Rear wiper stopped	1.0 or less
J-05 AS	Tail light (RH) control	Tail light (RH)	Light switch at TNS position	B+	• Tail light (RH) • Related wiring harnesses
Light switch at OFF position	1.0 or less
J-05 AT	Rear wiper power supply	Rear wiper motor	Ignition switch at ON	B+	• Rear wiper motor • Related wiring harnesses
Ignition switch off	1.0 or less
J-06 A	—	—	—	—	—
J-06 B	—	—	—	—	—
J-06 C	—	—	—	—	—
J-06 D	—	—	—	—	—
J-06 E	—	—	—	—	—
J-06 F	—	—	—	—	—
J-06 G	—	—	—	—	—
J-06 H	—	—	—	—	—
J-06 I	—	—	—	—	—
J-06 J	—	—	—	—	—
J-06 K	—	—	—	—	—
J-06 L	—	—	—	—	—
J-06 M	Intruder sensor power supply	Intruder sensor	Theft-deterrent system pre-arming or arming	B+	• Related wiring harnesses
Other	1.0 or less
J-06 N	Intruder sensor GND	Intruder sensor	Under any condition: Inspect for continuity to ground.	Continuity detected	• Related wiring harnesses
J-06 O	Door status	Power window main switch	All doors closed	B+	• Door switch • Power window main switch • Related wiring harnesses
Any door opened	1.0 or less
J-06 P	Trunk lid lock/unlock signal	Trunk lid key cylinder switch	At the moment key cylinder is unlocked	1.0 or less	• Trunk lid key cylinder switch • Related wiring harnesses
At the moment key cylinder is locked	Approx. 3
Key cylinder at neutral position	B+
J-06 Q	Rear door latch switch (RH) signal	Rear door latch switch (RH)	Rear door (RH) open (Rear door latch switch (RH) off)	B+	• Rear door latch switch (RH) • Related wiring harnesses
Rear door (RH) closed (Rear door latch switch (RH) on)	1.0 or less
J-06 R	Intruder sensor signal	Intruder sensor	Theft-deterrent system pre-arming, arming, or alarm	B+	• Intruder sensor • Related wiring harnesses
Intruder sensor detects intrusion	B+→ 1.0 or less → B+
Theft-deterrent system: Other	1.0 or less
J-06 S	Rear door latch switch (LH) signal	Rear door latch switch (LH)	Rear door (LH) open (Rear door latch switch (LH) off)	B+	• Rear door latch switch (LH) • Related wiring harnesses
Rear door (LH) closed (Rear door latch switch (LH) on)	1.0 or less
J-06 T	—	—	—	—	—
J-06 U	Front door latch switch (RH) signal	Front door latch switch (RH)	Front door (RH) open (Front door latch switch (RH) off)	B+	• Front door latch switch (RH) • Related wiring harnesses
Front door (RH) closed (Front door latch switch (RH) on)	1.0 or less
J-06 V	Unlock input (Driver-side door lock-link switch)	Driver-side door lock-link switch	Driver-side door locked	B+	• Driver-side door lock-link switch • Related wiring harnesses
Driver-side door unlocked	1.0 or less
J-06 W	Front door latch switch (LH) signal	Front door latch switch (LH)	Front door (LH) open (Front door latch switch (LH) off)	B+	• Front door latch switch (LH) • Related wiring harnesses
Front door (LH) closed (Front door latch switch (LH) on)	1.0 or less
J-06 X	Liftgate latch switch signal	Liftgate latch switch	Liftgate is open. (Liftgate latch switch on)	1.0 or less	• Liftgate latch switch • Related wiring harnesses
Liftgate is closed. (Liftgate latch switch off)	B+
J-06 Y	Lock input (Driver-side door key cylinder switch)	Driver-side door key cylinder switch	At the moment key cylinder is locked	1.0 or less	• Driver-side door key cylinder switch • Related wiring harnesses
Other	B+
J-06 Z	Trunk lid latch switch signal	Trunk lid latch switch	Trunk lid open (Trunk lid latch switch on)	1.0 or less	• Trunk lid latch switch • Related wiring harnesses
Trunk lid closed (Trunk lid latch switch off)	B+
J-06 AA	Unlock input (Driver-side door key cylinder switch)	Driver-side door key cylinder switch	At the moment key cylinder is unlocked	1.0 or less	• Driver-side door key cylinder switch • Related wiring harnesses
Other	B+
J-06 AB	Trunk lid open request signal	Trunk lid key cylinder push switch	Trunk lid key cylinder push switch pressed	1.0 or less	• Trunk lid key cylinder push switch • Related wiring harnesses
Trunk lid key cylinder push switch released	B+
J-06 AC	Lock input (Driver-side door lock-link switch)	Driver-side door lock-link switch	Driver-side door locked	1.0 or less	• Driver-side door lock-link switch • Related wiring harnesses
Driver-side door unlocked	B+
J-06 AD	Wiper or headlight operation request	Rain sensor	Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.	—	• Rain sensor • Related wiring harnesses
J-06 AE	—	—	—	—	—
J-06 AF	—	—	—	—	—

* :MZ-CD 1.6 (Y6)

Figure 1 (Ambient Temperature Sensor)

am3zzw00002261

Inspection Using an Oscilloscope (Reference)

Panel light control

am3zzw00002262

• Terminal connected: J-03 AI (+)—Negative battery terminal

• Oscilloscope setting: 2 V/DIV (Y): 5 ms/DIV (X), DC range

• Measurement condition: Panel light control switch turned to the darkest position.

PTC heater control

am3zzw00002263

• Terminal connected: J-04 A (+)—Negative battery terminal

• Oscilloscope setting: 2 V/DIV (Y): 5 ms/DIV (X), DC range

• Measurement condition:

― PTC heater operating

― Engine running

― After warm up

― Ambient tempewrature approx 20 °C

Intruder sensor signal

am3zzw00002264

• Terminal connected: J-05 R (+)—Negative battery terminal

• Oscilloscope setting: 2 V/DIV (Y): 100 ms/DIV (X), DC range

• Measurement condition: Theft-deterrent system arming.
