REAR FENDER RAIN RAIL AND CORNER PLATE REMOVAL[PANEL REPLACEMENT]

id098008611900

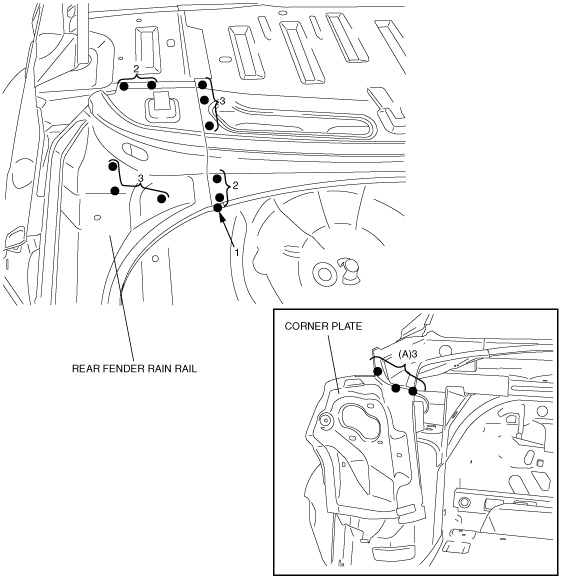

4SD

1.  Remove the rear fender rain rail and corner plate.

Note

•  When removing the rear fender rain rail and the corner plate separately, drill the 3 locations indicated by (A).

b3e0980b098

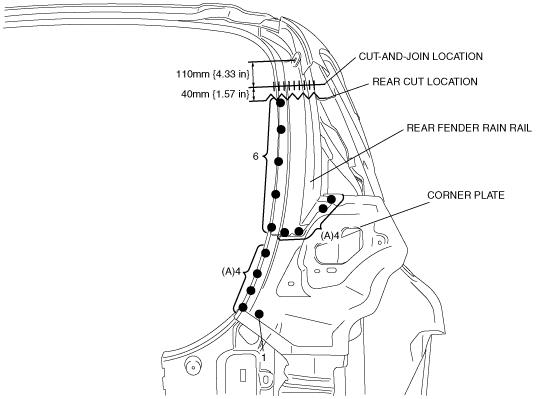

5HB

1.  Remove the rear fender rain rail and corner plate.

Note

•  When removing the rear fender rain rail and the corner plate separately, drill the 8 locations indicated by (A).

b3e0980b099
