REAR FENDER LOWER PANEL REMOVAL[PANEL REPLACEMENT]

id098008614100

4SD

1.  Remove the rear fender lower panel.

b3e0980b088

5HB

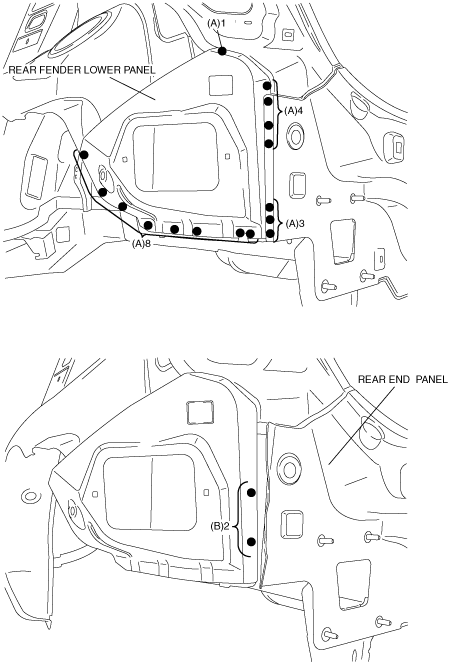

1.  Drill the 16 locations indicated by (A).

2.  Drill the 2 locations indicated by (B) and remove the rear fender lower panel.

b3e0980b089
