REAR FENDER LOWER PANEL INSTALLATION[PANEL REPLACEMENT]

id098008614200

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for plug welds before installing new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

b3e0980b090

5HB

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for plug welds before installing new parts.

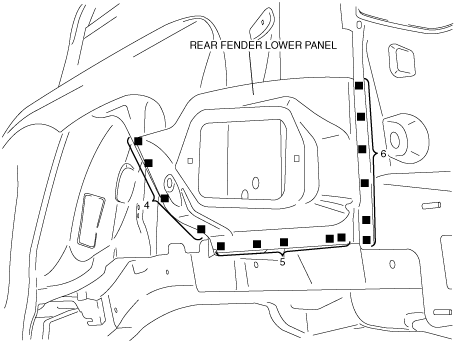

3.  Weld the 2 locations indicated by (A) and install the rear fender lower panel.

4.  After temporarily installing new parts, make sure the related parts fit properly.

b3e0980b091
