SIDE SILL PANEL REMOVAL[PANEL REPLACEMENT]

id098008615300

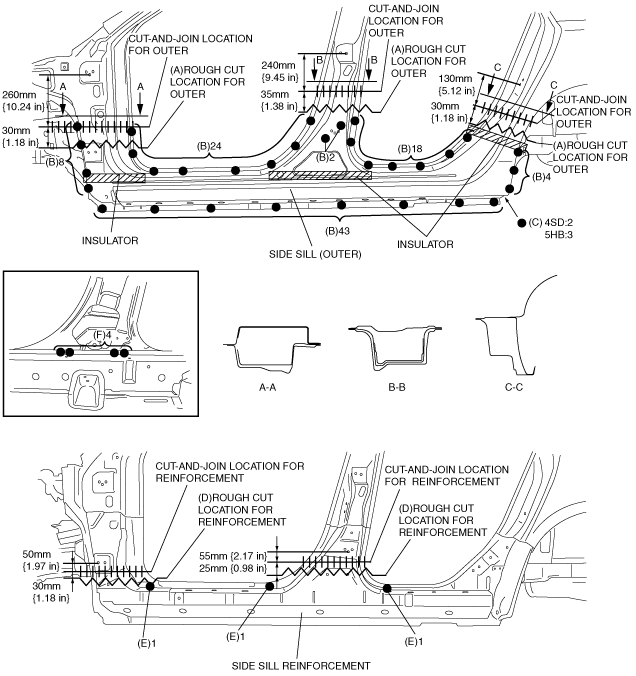

1.  Rough cut area (A), drill the 99 locations indicated by (B), the 2 locations (4SD) or 3 locations (5HB) indicated by (C), and then remove the side sill (outer).

Caution

•  Avoid cutting with a blowtorch or similar tools as the insulator (shaded area) is flammable.

2.  Rough cut area (D) and drill the 3 locations indicated by (E).

3.  Drill the 4 locations indicated by (F) from the interior and remove the side sill reinforcement.
