FRONT SIDE FRAME COMPONENT INSTALLATION[PANEL REPLACEMENT]

id098008742000

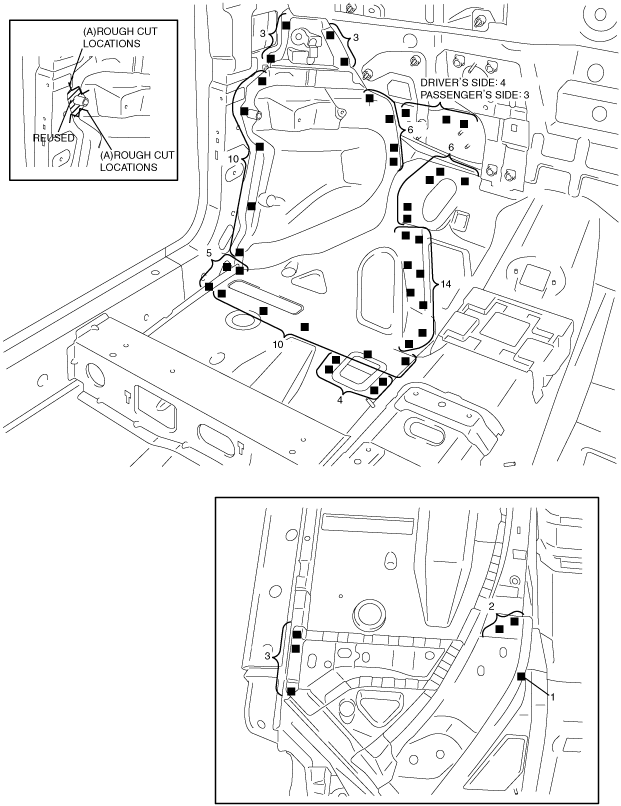

1.  To prepare for installation, cut area (A) on the new front side frame component.

2.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

3.  Drill holes for plug welds before installing new parts.

4.  After temporarily installing new parts, make sure the related parts fit properly.

5.  Install the part (A) cut out in step 1.

6.  Grind the area where the part (A) has been butt-welded with a disk grinder to finish the surface.

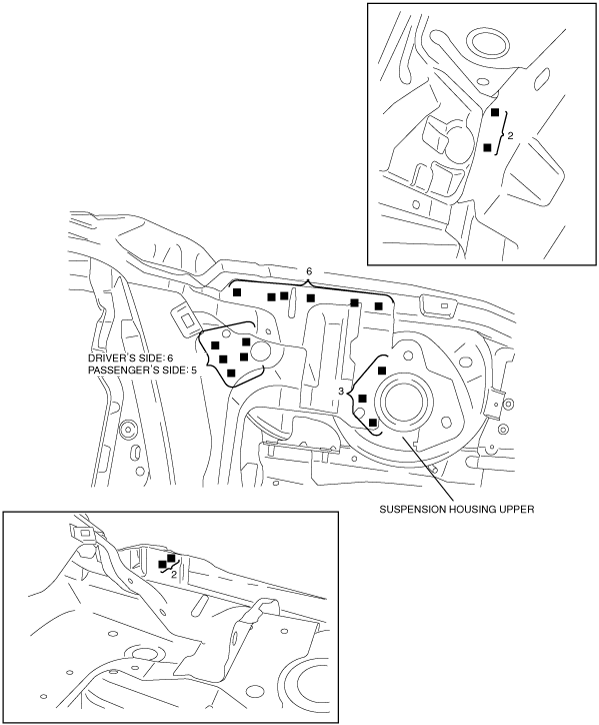

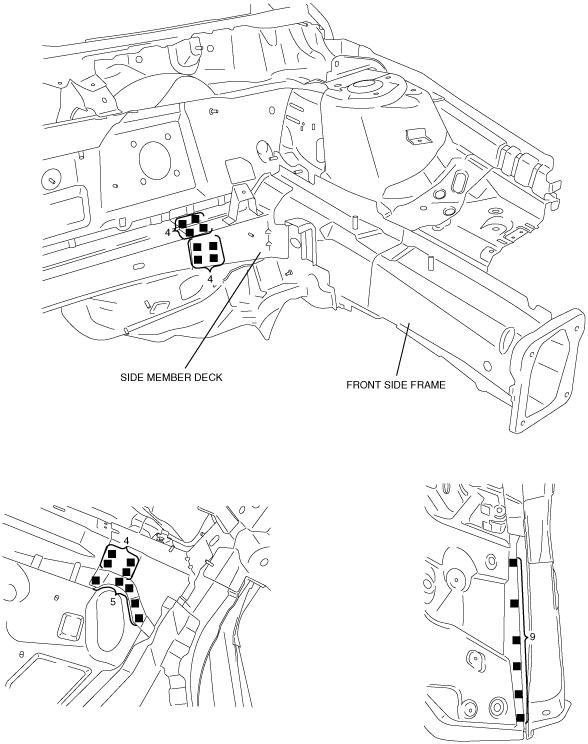

7.  Weld the remaining weld locations and install the front side frame component.
