REAR FLOOR PAN REMOVAL[PANEL REPLACEMENT]

id098008742700

1.  Rough cut area (A).

Caution

•  When rough cutting area (A), cut 20mm {0.79 in} away from the flange (towards rear) at the rear of the lower anchor.

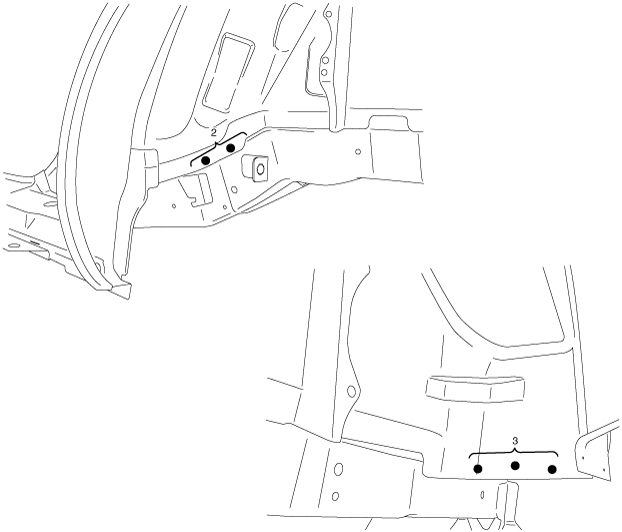

2.  Remove the rear floor pan.

b3e0980b102

b3e0980b103
