REAR FLOOR PAN INSTALLATION[PANEL REPLACEMENT]

id098008742800

1.  To prepare for installation, cut area (A) on the new rear floor pan, drill the 20 locations indicated by (B) and then remove the lower anchor.

Caution

•  When rough cutting area (A), cut 30 mm {1.18 in} away from the flange (towards front) at the rear of the lower anchor.

b3e0980b104

2.  Drill the 11 locations indicated by (A).

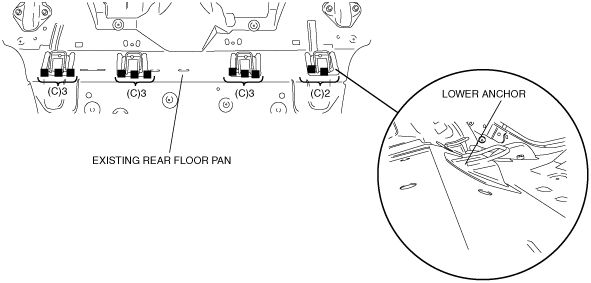

3.  Separate the lower anchor where joined using a chisel or similar tool and bend upwards to facilitate installation.

b3e0980b105

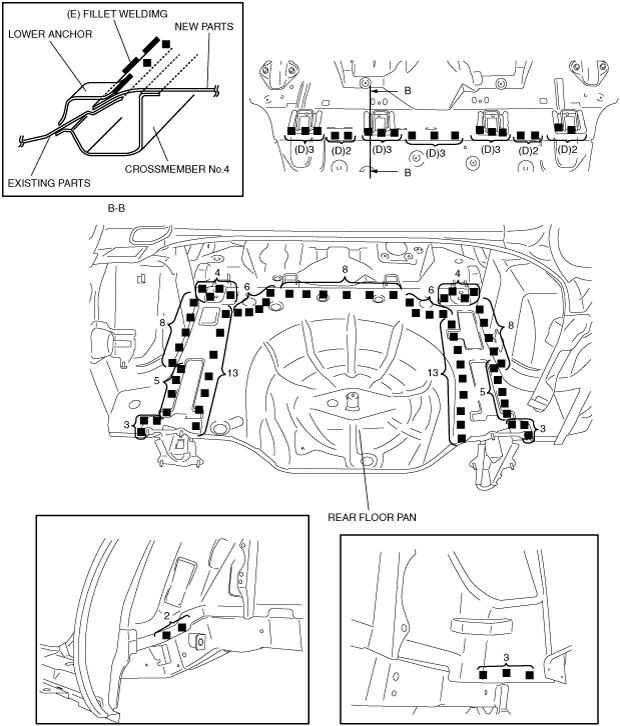

4.  Apply spot sealer to the areas where both the overlapping ends of the new and existing parts will be welded. Adhere the sections to be welded, and plug weld in 18 locations indicated by (D). Fillet weld along the seams of the lower anchor, and new and existing parts at the locations indicated by (E).

Note

•  Create a flange with flanging seal where new and existing parts are joined.

5.  Weld the remaining weld locations and install the rear floor pan.
