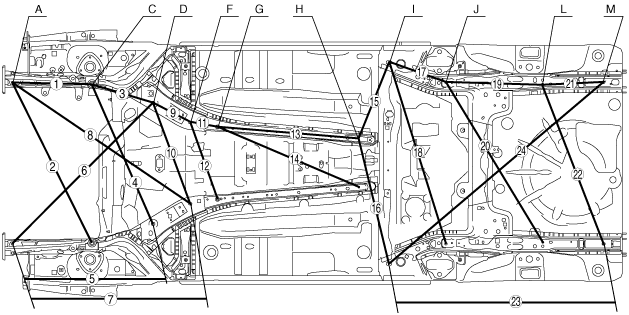

UNDERBODY STRAIGHT-LINE DIMENSIONS[DIMENSIONS]

id098010740500

b3e0980b002

b3e0980b003

Measured location

Dimensions mm {in}

1

475 {18.70}

2

1,063 {41.85}

3

429 {16.89}

4

931 {36.65}

5

875 {34.45}

6

1,207 {47.52}

7

1,115 {43.90}

8

1,306 {51.42}

9

254 {10.00}

10

642 {25.28}

11

166 {6.54}

12

485 {19.09}

13

852 {33.54}

14

921 {36.26}

15

489 {19.25}

16

764 {30.08}

17

366 {14.41}

18

1,132 {44.57}

19

598 {23.54}

20

1,122 {44.17}

21

364 {14.33}

22

1,017 {40.04}

23

1,307 {51.46}

24

1,690 {66.54}

Measured location	Dimensions mm {in}
1	475 {18.70}
2	1,063 {41.85}
3	429 {16.89}
4	931 {36.65}
5	875 {34.45}
6	1,207 {47.52}
7	1,115 {43.90}
8	1,306 {51.42}
9	254 {10.00}
10	642 {25.28}
11	166 {6.54}
12	485 {19.09}
13	852 {33.54}
14	921 {36.26}
15	489 {19.25}
16	764 {30.08}
17	366 {14.41}
18	1,132 {44.57}
19	598 {23.54}
20	1,122 {44.17}
21	364 {14.33}
22	1,017 {40.04}
23	1,307 {51.46}
24	1,690 {66.54}
