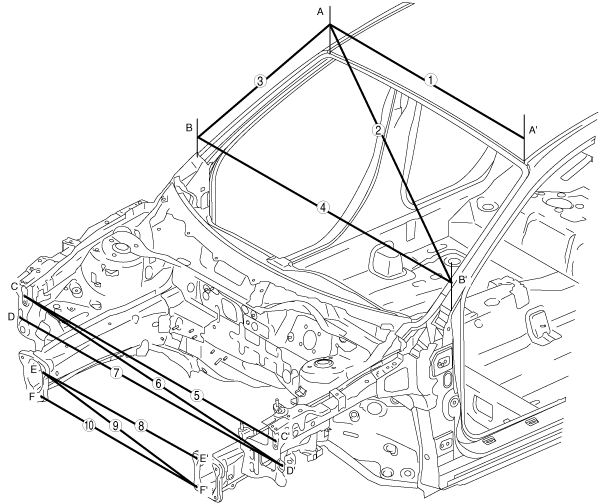

FRONT BODY STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]

id098010740600

aaxjjb00000074

am3zzb00000022

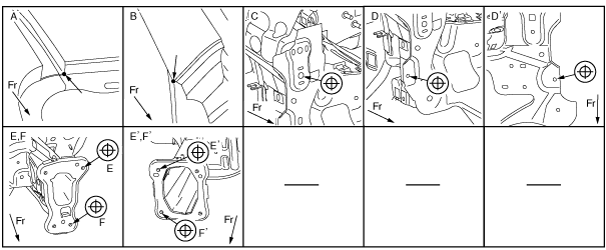

Measured location

Dimensions mm {in}

1

1,069 {42.09}

2

1,446 {56.93}

3

4SD:685 {26.97} , 5HB:684 {26.93}

4

4SD:1,518 {59.76} , 5HB:1,519 {59.80}

5

1,425 {56.10}

6

1,460 {57.48}

7

1,489 {58.62}

8

895 {35.24}

9

RH:905 {35.63} , LH:925 {36.42}

10

913 {35.94}

Measured location	Dimensions mm {in}
1	1,069 {42.09}
2	1,446 {56.93}
3	4SD:685 {26.97} , 5HB:684 {26.93}
4	4SD:1,518 {59.76} , 5HB:1,519 {59.80}
5	1,425 {56.10}
6	1,460 {57.48}
7	1,489 {58.62}
8	895 {35.24}
9	RH:905 {35.63} , LH:925 {36.42}
10	913 {35.94}
