FRONT BODY STRAIGHT-LINE DIMENSIONS (3)[DIMENSIONS]

id098010740800

4SD

L.H.D.models

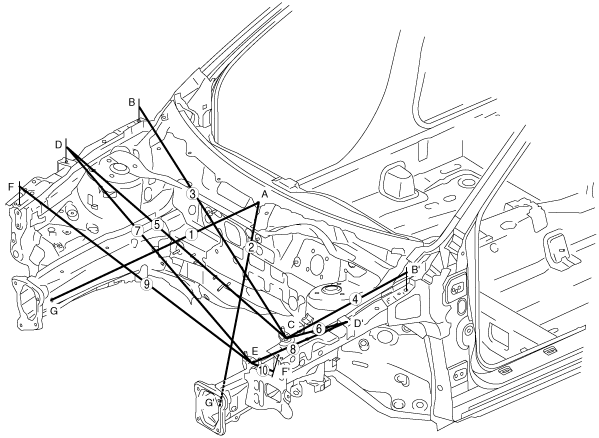

b3e0980b010

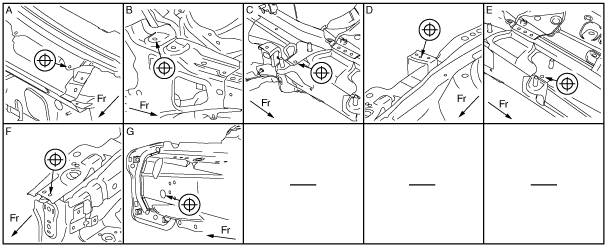

b3e0980b011

Measured location	Dimensions mm {in}
1	851 {33.50}
2	806 {31.73}
3	1,268 {49.92}
4	570 {22.44}
5	1,203 {47.36}
6	408 {16.06}
7	1,239 {48.78}
8	432 {17.01}
9	1,160 {45.67}
10	331 {13.03}

R.H.D.models

b3e0980b012

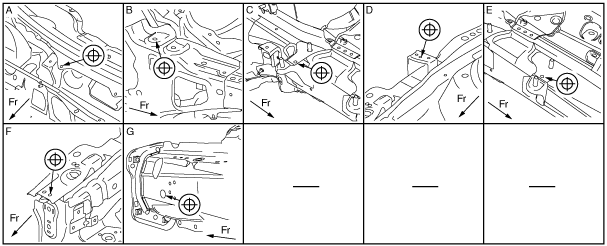

b3e0980b013

Measured location	Dimensions mm {in}
1	806 {31.73}
2	851 {33.50}
3	1,268 {49.92}
4	570 {22.44}
5	1,203 {47.36}
6	408 {16.06}
7	1,239 {48.78}
8	432 {17.01}
9	1,160 {45.67}
10	331 {13.03}

5HB

L.H.D.models

b3e0980b014

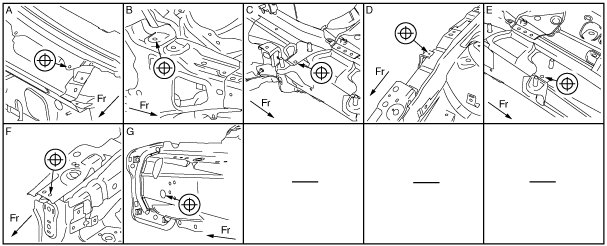

b3e0980b015

Measured location	Dimensions mm {in}
1	851 {33.50}
2	806 {31.73}
3	1,268 {49.92}
4	570 {22.44}
5	1,205 {47.44}
6	398 {15.67}
7	1,241 {48.86}
8	421 {16.57}
9	1,160 {45.67}
10	331 {13.03}

R.H.D.models

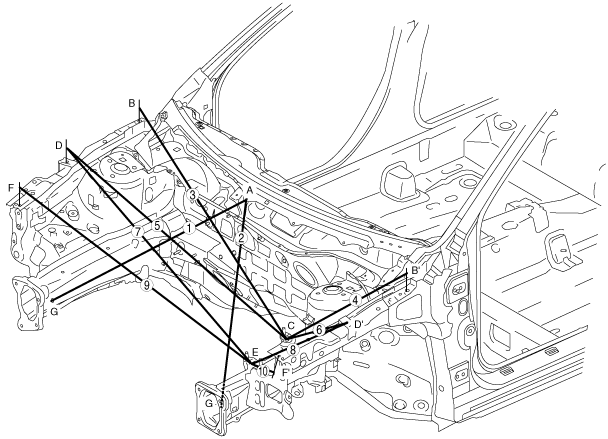

b3e0980b016

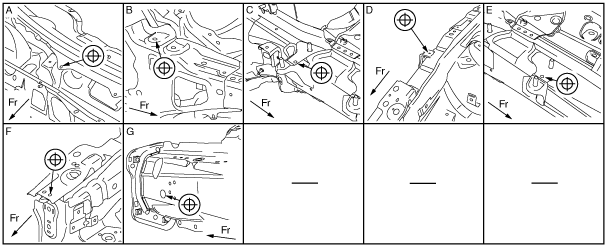

b3e0980b017

Measured location	Dimensions mm {in}
1	806 {31.73}
2	851 {33.50}
3	1,268 {49.92}
4	570 {22.44}
5	1,205 {47.44}
6	398 {15.67}
7	1,241 {48.86}
8	421 {16.57}
9	1,160 {45.67}
10	331 {13.03}
